Description

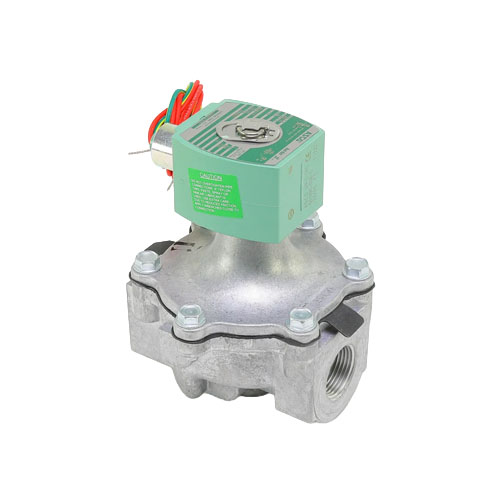

ASCO 8215G50-24VDC Solenoid Valve Overview
The ASCO 8215G50-24VDC is a 1-inch normally closed (N/C) solenoid valve engineered for dependable on/off control of air and gas media in demanding HVAC, commercial, and industrial applications. Powered by a 24VDC coil, this valve is designed for systems operating within a pressure range of 0 to 25 PSI, making it well-suited for low-pressure gas and pneumatic control circuits.
Key Features
- 1-inch pipe connection for high-flow air and gas applications
- Normally Closed (N/C) operation — valve closes automatically when de-energized for fail-safe performance
- Operating pressure range: 0 to 25 PSI
- 24VDC coil voltage for compatibility with low-voltage control systems
- Suitable media: air and gas
- Part of ASCO’s trusted Series 8215 direct-acting solenoid valve line
- Compact, robust construction built for long service life
Application & Benefits
The ASCO 8215G50-24VDC is ideal for use in HVAC gas train assemblies, pneumatic control systems, burner management, and other air/gas shut-off applications. The normally closed design provides an inherent safety feature — the valve automatically shuts off flow in the event of a power loss, protecting equipment and personnel. The 24VDC coil integrates seamlessly with standard building automation and control systems.
Specifications
- Brand: ASCO
- SKU / Model: 8215G50-24VDC
- Valve Series: 8215
- Port Size: 1 inch
- Valve Action: Normally Closed (N/C)
- Pressure Range: 0 – 25 PSI
- Coil Voltage: 24VDC
- Media: Air / Gas
