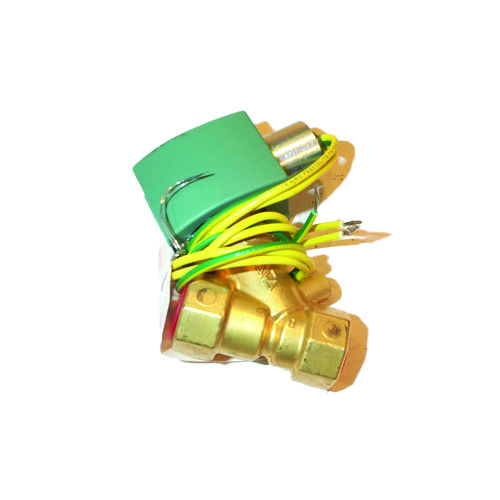

ASCO 8222G76 2-Way Normally Closed Solenoid Valve Overview
The ASCO 8222G76 is a heavy-duty, pilot-operated solenoid valve engineered for demanding steam and fluid control applications. Built with a durable brass body and Teflon seals, this valve delivers reliable, leak-tight shutoff performance in corrosive or high-temperature environments. The NEMA 4X enclosure rating ensures protection against dust, water, and corrosion, making it well-suited for both indoor and outdoor industrial installations.
Key Features
- 2-way, normally closed (NC) configuration — valve closes automatically when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation across the rated pressure range
- 1/2″ NPT pipe connection for straightforward installation into standard piping systems
- 120VAC coil voltage for compatibility with common commercial and industrial power supplies
- 2.5 Cv flow coefficient for optimized flow capacity
- Operating pressure range: 1–125 PSI, suitable for steam and compatible media
- Brass body construction for strength and corrosion resistance
- Teflon seals provide excellent chemical compatibility and long service life
- NEMA 4X enclosure rating — resistant to dust, splashing water, and corrosion
Specifications
- SKU: 8222G76
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC), Pilot Operated
- Connection Size: 1/2″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 2.5
- Pressure Range: 1–125 PSI
- Media: Steam
- Body Material: Brass
- Seal Material: Teflon (PTFE)
- Enclosure Rating: NEMA 4X
Applications
- Steam distribution and control systems
- Commercial and industrial HVAC systems
- Process heating and temperature control
- Boiler and hydronic systems
- Outdoor or wash-down environments requiring NEMA 4X protection
