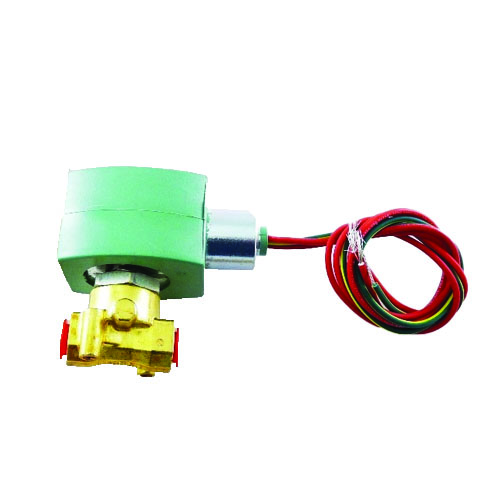

ASCO 8262H114LT Cryogenic Solenoid Valve Overview
The ASCO 8262H114LT is a 2-way, normally closed solenoid valve engineered for demanding cryogenic service applications. Built with a brass body and PTFE seals, this valve delivers reliable shutoff performance in extreme low-temperature environments. Its NEMA 4X enclosure rating ensures protection against corrosion, dust, and water ingress, making it suitable for both indoor and outdoor installations.
Key Features
- 2-way, normally closed (NC) operation — valve closes when de-energized for fail-safe performance
- 1/4″ NPT port connections for easy inline installation
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.73 for precise flow control
- Operating pressure range: 0–100 PSI
- Cryogenic service rated — designed for extremely low-temperature media
- Brass body construction for durability and corrosion resistance
- PTFE seals provide chemical compatibility and long service life in cryogenic applications
- NEMA 4X enclosure rating — watertight, dust-tight, and corrosion-resistant
Specifications
- SKU: 8262H114LT
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 0.73
- Pressure Range: 0–100 PSI
- Body Material: Brass
- Seal Material: PTFE
- Service Type: Cryogenic
- Enclosure Rating: NEMA 4X
Applications
- Cryogenic fluid control systems (liquid nitrogen, liquid oxygen, LNG, CO₂)
- Industrial refrigeration and low-temperature process lines
- Laboratory and medical gas systems
- Food and beverage processing with cryogenic media
- Outdoor or wash-down environments requiring NEMA 4X protection
Why Choose the ASCO 8262H114LT?
ASCO is a globally recognized leader in solenoid valve technology, and the 8262H114LT exemplifies their commitment to precision and reliability. The combination of a brass body, PTFE seals, and a NEMA 4X-rated enclosure makes this valve an ideal choice for professionals who need dependable performance in cryogenic and harsh-environment service. The normally closed design ensures a fail-safe shutoff whenever power is interrupted, providing an added layer of safety in critical systems.
