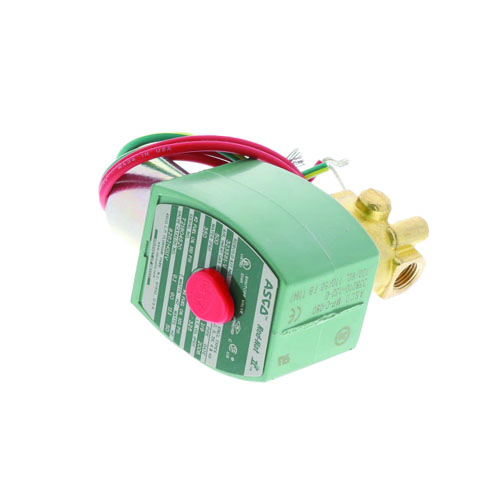

ASCO 8262H11V Direct-Acting Oil Shutoff Solenoid Valve
The ASCO 8262H11V is a heavy-duty, direct-acting, 2-way normally closed solenoid valve engineered specifically for fuel oil shutoff applications. Built with a brass body and Viton seals and disc, this valve delivers reliable, leak-tight shutoff performance in demanding commercial and industrial heating environments. The NEMA 4X enclosure ensures protection against corrosion, dust, and water ingress, making it well-suited for harsh or outdoor-adjacent installations.
Key Features
- 2-way, normally closed (N/C) direct-acting solenoid valve
- 1/8″ NPT port connection for compact system integration
- 120VAC coil voltage for standard commercial power compatibility
- Flow coefficient (Cv): 0.21 for precise flow control
- Rated 0–350 PSI for #2 Fuel Oil at 60 SSU viscosity
- Rated 0–325 PSI for #4 Fuel Oil at 300 SSU viscosity
- Brass body construction for corrosion resistance and durability
- Viton seals and disc for compatibility with fuel oil media
- NEMA 4X enclosure for protection against corrosion, dust, and moisture
- 1/2″ conduit hub for secure, code-compliant electrical connections
Application
The 8262H11V is ideal for use as an oil shutoff valve in fuel oil burner systems, boiler fuel trains, and other heating equipment requiring reliable, electrically actuated flow control. Its direct-acting design ensures positive shutoff without relying on line pressure, providing dependable operation across the full rated pressure range.
Specifications
- Brand: ASCO
- Model / SKU: 8262H11V
- Valve Type: 2-Way, Normally Closed, Direct Acting
- Port Size: 1/8″ NPT
- Voltage: 120VAC
- Cv (Flow Coefficient): 0.21
- Pressure Rating (#2 Fuel Oil @ 60 SSU): 0–350 PSI
- Pressure Rating (#4 Fuel Oil @ 300 SSU): 0–325 PSI
- Body Material: Brass
- Seal / Disc Material: Viton
- Enclosure Rating: NEMA 4X
- Conduit Hub: 1/2″
