Description

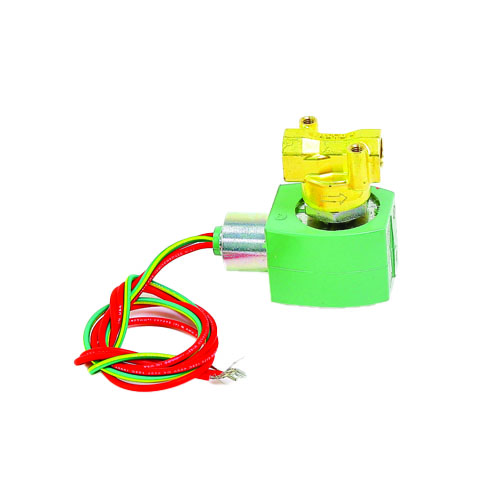

ASCO 8262H13V General Service Solenoid Valve Overview
The ASCO 8262H13V is a direct-acting, 2-way normally closed solenoid valve engineered for dependable general service applications across air, water, and light oil systems. Built with a durable brass body and Viton seals, this valve delivers reliable shutoff performance in demanding commercial and industrial HVAC environments. Its NEMA 4X enclosure rating ensures protection against corrosion, dust, and water ingress — making it suitable for both indoor and outdoor installations.
Key Specifications
- Model: ASCO 8262H13V
- Valve Type: 2-Way, Normally Closed
- Operation: Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 0.73
- Pressure Range – Air: 0–55 PSI
- Pressure Range – Water: 0–54 PSI
- Pressure Range – Light Oil: 0–40 PSI
- Body Material: Brass
- Seal Material: Viton
- Enclosure Rating: NEMA 4X
Media Compatibility
- Air – up to 55 PSI
- Water – up to 54 PSI
- Light Oil – up to 40 PSI
Features & Benefits
- Direct-acting design operates without minimum pressure differential, ensuring reliable performance at zero pressure
- Normally closed configuration provides fail-safe shutoff when de-energized
- Brass body construction offers excellent corrosion resistance for water and air service
- Viton seals provide superior chemical resistance and durability across a wide temperature range
- NEMA 4X enclosure protects the coil and electrical components from moisture, dust, and corrosive environments
- Compact 1/4″ NPT port size suits tight installation spaces in HVAC and process piping systems
- General service design supports a broad range of commercial and light industrial applications
Typical Applications
- HVAC air and water control systems
- Compressed air line shutoff
- Water supply control in commercial equipment
- Light oil systems and fuel control
- OEM equipment and process automation
