Description

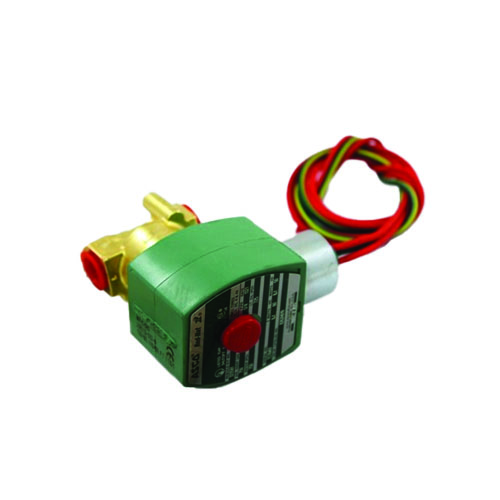

The ASCO 8262H19 is a direct-acting, 2-way normally closed solenoid valve engineered for reliable general service applications across a wide range of media and pressure conditions. Built with a durable brass body and NBR seals, this valve is well-suited for air, water, and light oil service in demanding commercial and industrial HVAC environments.
Key Features
- 2-way, normally closed operation — valve closes when de-energized for fail-safe performance
- Direct-acting design — operates without requiring a minimum pressure differential
- 1/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for compatibility with standard control circuits
- 0.06 Cv flow coefficient for precise low-flow control
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, dust-tight and watertight
Specifications
- SKU: 8262H19
- Brand: ASCO
- Valve Type: 2-Way Normally Closed, Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Cv: 0.06
- Pressure Range (Air & Water): 0–750 PSI
- Pressure Range (Light Oil): 0–725 PSI
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
Applications
- Air and water control in HVAC and building automation systems
- Light oil service in heating and combustion equipment
- General-purpose fluid control in commercial and industrial settings
- On/off control where fail-safe closed operation is required
