Description

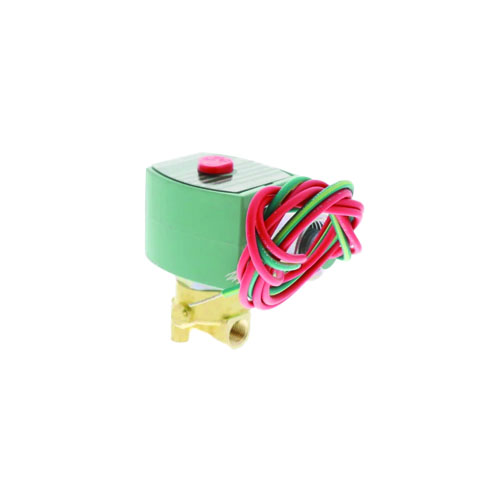

The ASCO 8262H2 is a direct-acting, 2-way normally closed general service solenoid valve engineered for reliable fluid and gas control across a wide range of HVAC, industrial, and commercial applications. With a compact 1/8″ NPT connection and a robust brass body, this valve delivers dependable performance in demanding environments.
Key Features
- 2-way, normally closed (NC) direct-acting design — opens when energized, closes when de-energized
- 1/8″ NPT port connection for easy installation in tight spaces
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.35 for precise flow control
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to corrosion, dust, and water ingress
- Brass body construction for durability and corrosion resistance
- NBR (Buna-N) seals for compatibility with air, water, and light oil media
Pressure Ratings by Media
- Air: 0–185 PSI
- Water: 0–180 PSI
- Light Oil: 0–120 PSI
Specifications
- SKU: 8262H2
- Brand: ASCO
- Valve Type: 2-Way Normally Closed, Direct Acting
- Port Size: 1/8″ NPT
- Voltage: 120VAC
- Cv (Flow Coefficient): 0.35
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Compatible Media: Air, Water, Light Oil
Applications
- HVAC pneumatic control systems
- Water and fluid control in commercial and industrial equipment
- Light oil systems and fuel handling
- General-purpose on/off flow control
