Description

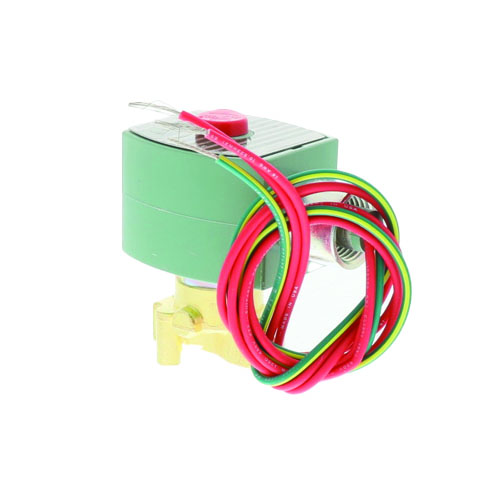

ASCO 8262H202 Direct-Acting General Service Solenoid Valve
The ASCO 8262H202 is a direct-acting, 2-way normally closed solenoid valve engineered for dependable general service applications across a wide range of media. With a rugged brass body, NBR disc, and NEMA 4X enclosure, this valve delivers reliable shutoff performance in demanding commercial and industrial HVAC environments.
Key Features
- 2-way, normally closed configuration — valve opens when energized
- Direct-acting design — no minimum pressure differential required for operation
- 1/4″ NPT port connections for easy installation
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.52 for precise flow control
- Brass body construction for corrosion resistance and durability
- NBR (Buna-N) disc seal for compatibility with air, water, and light oil
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, dust-tight and watertight
Pressure Ratings by Media
- Air: 0–210 PSI
- Water: 0–200 PSI
- Light Oil: 0–145 PSI
Specifications
- SKU: 8262H202
- Brand: ASCO
- Valve Type: 2-Way Normally Closed, Direct Acting
- Port Size: 1/4″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 0.52
- Body Material: Brass
- Seal/Disc Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Compatible Media: Air, Water, Light Oil
Applications
- HVAC air and water control systems
- General industrial fluid control
- Light oil service applications
- Pneumatic and hydraulic systems
- Commercial building automation and controls
