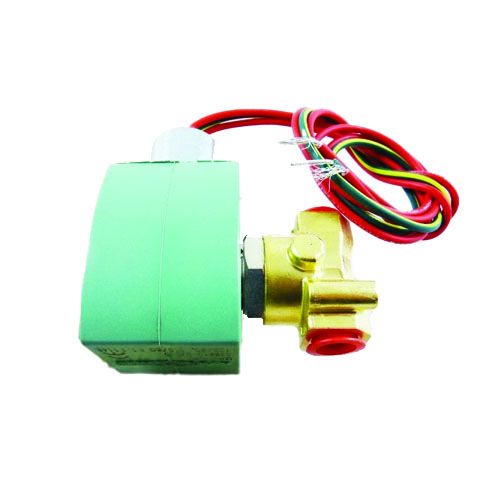

ASCO 8262H202V General Service Solenoid Valve Overview
The ASCO 8262H202V is a direct-acting, 2-way normally closed solenoid valve engineered for dependable general service performance across a wide range of fluid media. Featuring a rugged brass body, Viton seat, and a NEMA 4X rated enclosure, this valve is built to handle demanding industrial, commercial, and HVAC applications where corrosion resistance and weathertight protection are essential.
Key Features
- 2-way, normally closed (NC) direct-acting solenoid valve
- 1/4″ NPT port connection for easy installation
- 120VAC coil voltage for standard electrical compatibility
- .52 Cv flow coefficient for precise flow control
- Brass body construction for corrosion resistance and durability
- Viton seat material for excellent chemical and temperature resistance
- NEMA 4X enclosure rating — weathertight and corrosion-resistant for indoor and outdoor use
- Direct-acting design — operates without minimum pressure differential
Pressure Ratings by Media
- Air: 0–210 PSI operating pressure range
- Water: 0–200 PSI operating pressure range
- Light Oil: 0–145 PSI operating pressure range
Specifications
- SKU: 8262H202V
- Brand: ASCO
- Valve Type: 2-Way, Normally Closed
- Operation: Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Cv: 0.52
- Body Material: Brass
- Seat Material: Viton
- Enclosure Rating: NEMA 4X
- Media: Air, Water, Light Oil
Applications
The ASCO 8262H202V is ideal for use in HVAC systems, pneumatic controls, water lines, light oil systems, and general industrial fluid control applications. Its direct-acting design ensures reliable operation even at zero pressure differential, making it suitable for a broad spectrum of on/off control tasks. The NEMA 4X enclosure provides added protection in wet, washdown, or outdoor environments.
