Description

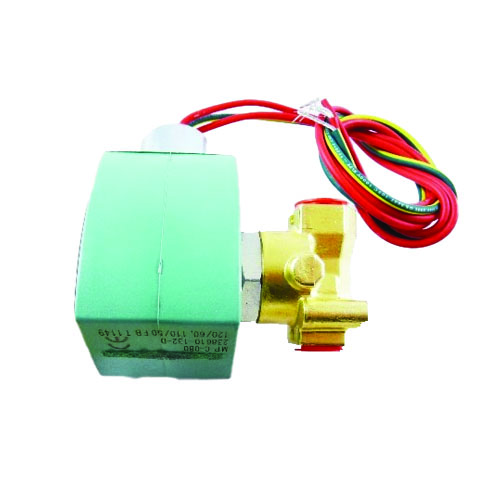

ASCO 8262H212 Direct-Acting General Service Solenoid Valve
The ASCO 8262H212 is a 2-way, normally closed, direct-acting solenoid valve engineered for dependable general service applications. Built with a durable brass body and an NBR (Buna-N) disc, this valve is well-suited for use with air, water, and light oil media in a wide range of commercial and industrial HVAC and fluid control systems. Its NEMA 4X enclosure provides robust protection against dust, splashing water, and corrosion, making it a reliable choice for demanding environments.
Key Features
- 2-Way, Normally Closed (NC) operation — valve closes when de-energized for fail-safe performance
- Direct-acting design — operates independently of line pressure for consistent performance across the full pressure range
- 1/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.88 for precise flow control
- Operating pressure range: 0–90 PSI
- Brass body construction for corrosion resistance and long service life
- NBR (Nitrile Buna-N) disc — compatible with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdown and corrosion
Specifications
- Brand: ASCO
- Model / SKU: 8262H212
- Valve Type: 2-Way, Normally Closed
- Actuation: Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Cv (Flow Coefficient): 0.88
- Pressure Range: 0–90 PSI
- Body Material: Brass
- Seal / Disc Material: NBR (Nitrile Buna-N)
- Enclosure Rating: NEMA 4X
- Compatible Media: Air, Water, Light Oil
- Service Type: General Service
Applications
- HVAC air and water control systems
- Light oil handling and distribution lines
- Industrial fluid control and automation
- On/off flow control in commercial building systems
- Pneumatic and hydraulic control circuits
