Description
Overview

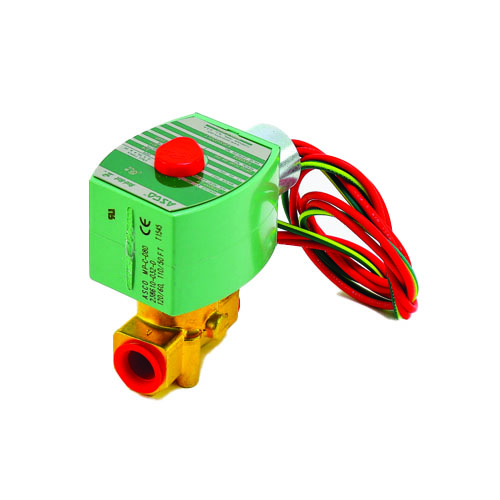

The ASCO 8263H232LT is a 2-way, normally closed solenoid valve engineered specifically for cryogenic service applications. Built with a rugged brass body and a low-temperature (LT) NBR seal, this valve is designed to perform reliably in demanding low-temperature environments. The NEMA 4X enclosure provides protection against corrosion, dust, and water ingress, making it suitable for both indoor and outdoor installations.
Key Features
- 2-way, normally closed valve configuration — closes when de-energized for fail-safe operation
- Cryogenic service rating for reliable performance in extreme low-temperature applications
- Brass valve body for excellent corrosion resistance and durability
- Low-Temperature (LT) NBR seal material engineered for cryogenic fluid compatibility
- NEMA 4X enclosure rating — resistant to corrosion, dust, rain, and hose-directed water
- 3/8″ NPT port connection for easy inline installation
- 120VAC coil voltage for standard North American electrical systems
- Flow coefficient (Cv) of 0.35 for precise, controlled flow regulation
- Operating pressure range: 0–155 PSI
Specifications
- SKU: 8263H232LT
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Port Size: 3/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 0.35
- Pressure Range: 0–155 PSI
- Body Material: Brass
- Seal Material: LT NBR (Low-Temperature Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
- Service Type: Cryogenic
Applications
- Cryogenic fluid control systems
- Liquid nitrogen and liquid oxygen service
- Industrial refrigeration and low-temperature process systems
- Chemical processing with cryogenic media
- Outdoor or corrosive environment installations requiring NEMA 4X protection
