Description

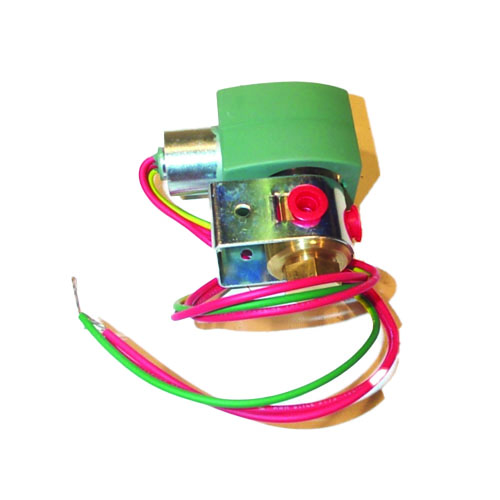

ASCO 8320G1 3-Way Universal Solenoid Valve Overview
The ASCO 8320G1 is a direct-acting, 3-way universal solenoid valve engineered for general service applications in HVAC, industrial, and process control systems. With a compact 1/8″ NPT port size and a durable brass body, this valve delivers reliable on/off control of air, water, and light oil media. The NBR (Buna-N) seal provides excellent compatibility with a broad range of fluids, while the NEMA 4X enclosure rating ensures protection against corrosion, dust, and water ingress — making it suitable for both indoor and outdoor installations.
Key Features
- 3-way universal valve configuration for versatile piping arrangements
- Direct-acting operation — no minimum pressure differential required
- 1/8″ NPT port connection for easy integration into existing piping
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.09 for precise low-flow control
- Operating pressure range: 0–100 PSI
- Brass body construction for corrosion resistance and durability
- NBR (Buna-N) seal material for compatibility with air, water, and light oil
- NEMA 4X enclosure rating for indoor/outdoor use and washdown environments
Compatible Media
- Air
- Water
- Light Oil
Specifications
- SKU: 8320G1
- Brand: ASCO
- Valve Type: 3-Way Universal, Direct Acting
- Port Size: 1/8″ NPT
- Voltage: 120VAC
- Cv: 0.09
- Pressure Range: 0–100 PSI
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
Applications
- HVAC control systems
- Pneumatic pilot control
- Water and fluid distribution systems
- Light oil service lines
- Industrial automation and process control
