Description

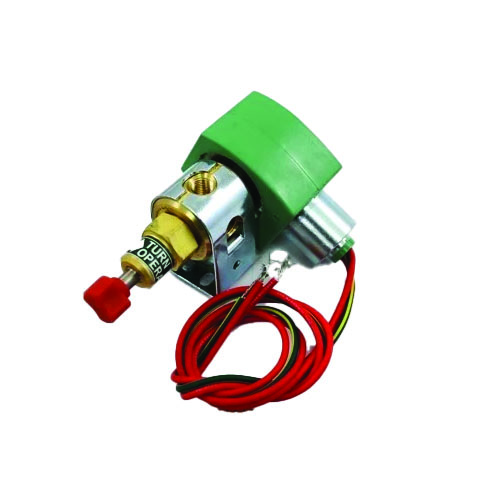

ASCO 8320G136MS 3-Way Normally Open Direct-Acting Solenoid Valve
The ASCO 8320G136MS is a general-service, direct-acting solenoid valve engineered for reliable fluid control in demanding HVAC and industrial applications. With a 3-way normally open configuration, this valve is designed to handle air, water, and light oil media across a broad pressure range — making it a versatile choice for a wide variety of system configurations.
Key Features
- 3-way, normally open (N/O) valve configuration for flexible circuit control
- Direct-acting design — no minimum pressure differential required for operation
- 1/8″ NPT port connection for easy integration into existing piping
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.06 for precise, low-flow applications
- Operating pressure range: 0–200 PSI
- Brass body construction for corrosion resistance and durability
- NBR (Buna-N) seal material compatible with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, wash-down environments, and corrosive locations
- Screw-type manual operator for manual override capability during maintenance or power outages
Specifications
- SKU: 8320G136MS
- Brand: ASCO
- Valve Type: 3-Way Solenoid Valve
- Operation: Normally Open (N/O)
- Actuation: Direct Acting
- Port Size: 1/8″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 0.06
- Pressure Range: 0–200 PSI
- Media: Air, Water, Light Oil
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Manual Operator: Screw Type
Applications
- HVAC control systems requiring precise fluid switching
- Pneumatic and hydraulic control circuits
- Water and light oil distribution systems
- Industrial automation and process control
- Outdoor or wash-down environments requiring NEMA 4X protection
The NEMA 4X enclosure ensures protection against dust, splashing water, and corrosion, while the screw-type manual operator adds an extra layer of operational flexibility. Trust ASCO’s proven engineering for dependable solenoid valve performance in your next project.
