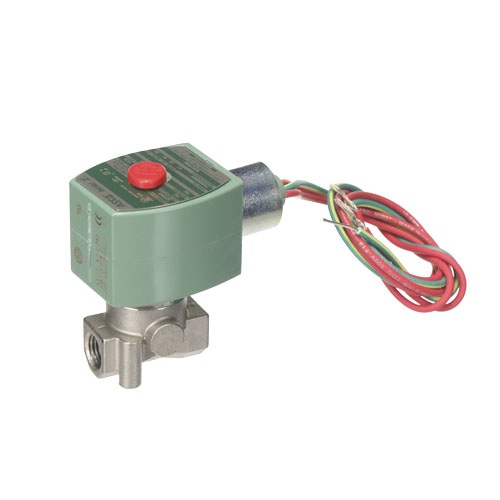

ASCO EF8262H080-220/50 1/4″ 2-Way N/C Explosion-Proof Solenoid Valve 750 PSI

Description

ASCO EF8262H080-220/50 Explosion-Proof Solenoid Valve Overview

The ASCO EF8262H080-220/50 is a heavy-duty, 2-way normally closed (N/C) explosion-proof solenoid valve engineered for demanding industrial and commercial HVAC applications. Designed to control the flow of air and water, this valve delivers reliable, precise shutoff performance in hazardous-location environments where safety and durability are non-negotiable.

Key Features

• 1/4″ pipe connection for compact, space-efficient installation
• 2-Way, Normally Closed (N/C) operation — valve closes automatically when de-energized for fail-safe performance
• Explosion-proof (EXPRF) construction rated for hazardous locations
• 750 PSI maximum pressure rating for high-pressure air and water service
• 220V AC / 50 Hz coil voltage for compatibility with international and industrial power supplies
• Compatible media: Air and Water
• Robust ASCO build quality for long service life in harsh environments

Application

Ideal for use in industrial HVAC systems, process control, and mechanical rooms where explosion-proof certification is required. The N/C design ensures the valve defaults to a closed position during power loss, making it well-suited for safety-critical shutoff applications involving compressed air lines and water systems.

Specifications

• Brand: ASCO
• Model / SKU: EF8262H080-220/50
• Pipe Size: 1/4″
• Valve Type: 2-Way, Normally Closed (N/C)
• Classification: Explosion-Proof (EXPRF)
• Pressure Rating: 750 PSI
• Compatible Media: Air / Water
• Coil Voltage: 220V AC
• Frequency: 50 Hz
