Description
Overview

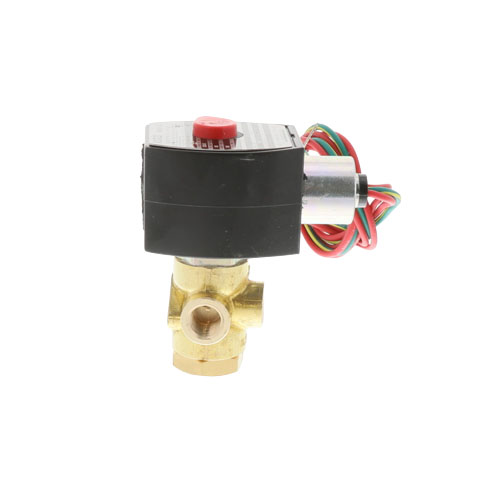

The ASCO EF8320G184 is a direct-acting, 3-way normally closed solenoid valve engineered for demanding general-service applications in commercial and industrial HVAC, pneumatic, and fluid control systems. Housed in a robust explosion-proof enclosure, this valve is built to perform reliably in hazardous environments where safety and durability are non-negotiable.
Key Features
- 3-way normally closed (N/C) configuration for precise flow control
- Direct-acting design — operates without a minimum pressure differential
- 1/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for compatibility with standard control circuits
- Flow coefficient (Cv) of 0.12 for accurate low-flow applications
- Operating pressure range: 0–150 PSI
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seal material compatible with air, water, and light oil media
- Explosion-proof enclosure for safe operation in hazardous locations
Specifications
- SKU / Part Number: EF8320G184
- Brand: ASCO
- Valve Type: 3-Way Solenoid Valve
- Operation: Normally Closed (N/C), Direct Acting
- Port Size: 1/4″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 0.12
- Pressure Range: 0–150 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Compatible Media: Air, Water, Light Oil
- Enclosure Type: Explosion Proof
- Service Type: General Service
Applications
- Pneumatic control systems
- Water and light oil flow control in commercial HVAC systems
- Hazardous location installations requiring explosion-proof rated components
- Industrial process control and automation
- Pilot valve applications in air and fluid circuits
Why Choose the ASCO EF8320G184?
ASCO is a globally recognized leader in solenoid valve technology. The EF8320G184 combines a rugged brass body, chemically resistant NBR seals, and a certified explosion-proof enclosure to deliver dependable performance across a wide range of media and environments. Its direct-acting design ensures reliable operation even at zero pressure differential, making it a versatile choice for both pneumatic and liquid service applications.
