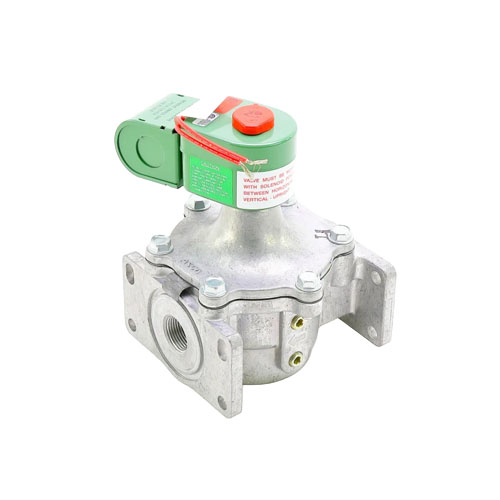

ASCO JB8214235CSA 2-Way Normally Closed 3/4″ NPT 120VAC Fuel Gas Solenoid Shutoff Valve

Description

ASCO JB8214235CSA Fuel Gas Solenoid Shutoff Valve Overview

The ASCO JB8214235CSA is a 2-way, normally closed solenoid valve engineered for reliable fuel gas shutoff applications in commercial and industrial HVAC systems. With a robust aluminum body, NBR seals, and a NEMA 1 enclosure with junction box, this valve delivers dependable performance and straightforward installation in demanding environments.

Key Features

• 2-Way, Normally Closed (NC) operation — valve closes automatically upon de-energization for fail-safe fuel shutoff
• 3/4″ connection — compatible with NPT or Flange pipe configurations for flexible installation
• 120VAC coil voltage for standard commercial electrical supply compatibility
• Flow coefficient (Cv) of 11 — supports up to 593,200 BTU/hr fuel gas capacity
• Operating pressure range: 0–5 PSI, ideal for low-pressure fuel gas systems
• Aluminum body construction — lightweight, corrosion-resistant, and durable
• NBR (Nitrile Butadiene Rubber) seals — excellent compatibility with natural gas and other fuel gases
• NEMA 1 enclosure with junction box — suitable for general indoor use, protecting internal components from dust and light contact

Specifications

• SKU: JB8214235CSA
• Brand: ASCO
• Valve Type: 2-Way Solenoid, Normally Closed
• Pipe Size: 3/4″
• Connection Type: NPT or Flange
• Voltage: 120VAC
• Flow Coefficient (Cv): 11
• Capacity: 593,200 BTU/hr
• Pressure Range: 0–5 PSI
• Body Material: Aluminum
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Enclosure: NEMA 1 with Junction Box
• Application: Fuel Gas Shutoff

Application

Designed specifically for fuel gas shutoff service, the ASCO JB8214235CSA is well-suited for use in commercial boilers, furnaces, rooftop units, and other gas-fired HVAC equipment. The normally closed design ensures the gas supply is automatically interrupted whenever the valve is de-energized, providing an essential layer of safety in any gas system. The junction box enclosure simplifies field wiring and supports clean, code-compliant installations.
