Description

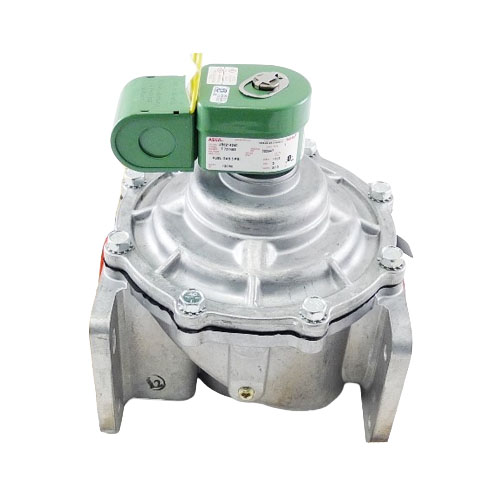

The ASCO JB8214240CSA is a heavy-duty, 2-way normally closed solenoid valve engineered for reliable fuel gas shutoff in commercial and industrial HVAC and combustion applications. With a generous 3-inch port size available in NPT or flange connection, this valve delivers exceptional flow capacity and is built to perform in demanding environments.
Key Features
- 2-way, normally closed (N/C) operation ensures the valve defaults to the safe, closed position upon loss of power
- 3″ pipe connection compatible with NPT or flange configurations for installation flexibility
- 120VAC coil voltage for standard commercial power compatibility
- High flow capacity of 105 Cv — rated for up to 5,661,700 BTU/hr fuel gas throughput
- Operating pressure range: 0–5 PSI, ideal for low-pressure fuel gas systems
- Aluminum body construction for a lightweight yet durable build
- NBR (Buna-N) seals provide excellent resistance to natural gas, propane, and other common fuel gases
- NEMA 1 enclosure with integrated junction box for clean, protected wiring connections
Specifications
- SKU: JB8214240CSA
- Brand: ASCO
- Valve Type: 2-Way Normally Closed Solenoid Valve
- Port Size: 3″
- Connection Type: NPT or Flange
- Voltage: 120VAC
- Flow Coefficient (Cv): 105
- BTU Rating: 5,661,700 BTU/hr
- Pressure Range: 0–5 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 1
- Enclosure Type: Junction Box
- Media: Fuel Gas
Applications
- Commercial and industrial fuel gas shutoff systems
- Boiler and burner fuel supply control
- Combustion air and gas management systems
- Natural gas and propane distribution lines
- Safety shutoff on loss of power or control signal
The ASCO JB8214240CSA is a trusted solution for contractors and engineers who require a high-capacity, code-compliant fuel gas shutoff valve. Its normally closed design provides an inherent safety advantage, automatically shutting off gas flow whenever power is interrupted. The NEMA 1 junction box enclosure simplifies field wiring and keeps connections protected in indoor mechanical room installations.
