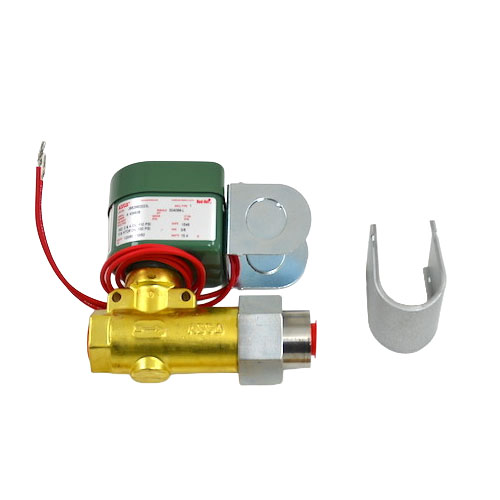

ASCO JB8266D23L Direct Acting Fuel Oil Solenoid Shutoff Valve
The ASCO JB8266D23L is a heavy-duty, direct-acting, 2-way normally closed solenoid valve engineered specifically for fuel oil shutoff applications. With a robust brass body and stainless steel internal components, this valve delivers reliable, leak-tight shutoff across a broad range of fuel oil viscosities — from light distillates to heavy heated oils. It is ideal for commercial and industrial burner systems, fuel oil supply lines, and heating equipment requiring dependable automatic shutoff control.
Key Features
- Direct-acting operation — opens immediately upon energization, no minimum pressure differential required
- 2-way, normally closed (N/C) configuration for fail-safe fuel shutoff
- 3/8″ NPT pipe connection for easy installation into standard fuel oil piping
- 120VAC coil voltage for compatibility with standard commercial control circuits
- 1.2 Cv flow coefficient for efficient fuel oil flow management
- Brass body construction for corrosion resistance in fuel oil service
- Stainless steel internal components for long-term durability and compatibility with fuel oils
Pressure & Fluid Compatibility
- 0–110 PSI operating pressure range for #2 Fuel Oil at 60 SSU
- 0–110 PSI operating pressure range for #4 Fuel Oil at 300 SSU
- 0–100 PSI operating pressure range for #5 Fuel Oil or heated #6 Fuel Oil up to 5000 SSU
- Compatible with a wide range of fuel oil viscosities from light to heavy grades
Specifications
- SKU: JB8266D23L
- Brand: ASCO
- Valve Type: 2-Way, Normally Closed (N/C), Direct Acting
- Connection Size: 3/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 1.2
- Body Material: Brass
- Internal Components: Stainless Steel
- Max Operating Pressure (#2 & #4 Fuel Oil): 110 PSI
- Max Operating Pressure (#5 & Heated #6 Fuel Oil): 100 PSI
- Fluid Viscosity Range: Up to 5000 SSU (heated #6 fuel oil)
- Application: Fuel Oil Shutoff
Applications
- Commercial and industrial fuel oil burner systems
- Automatic fuel shutoff on heating equipment
- Fuel oil supply and return line control
- Boiler and furnace fuel management systems
- Systems handling #2, #4, #5, or #6 fuel oil grades
