Overview

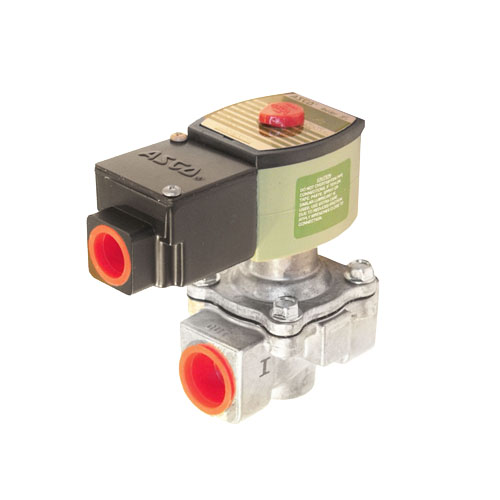

The ASCO JKF8215G33 is a heavy-duty 2-way, normally open solenoid valve engineered for air-fuel gas vent applications in demanding commercial and industrial HVAC and combustion systems. With a 3/4″ NPT connection, 120VAC operation, and a robust aluminum body, this valve delivers reliable, precise flow control where dependability is non-negotiable.
Key Features
- 2-Way, Normally Open (N.O.) configuration — valve opens when de-energized for fail-safe venting
- 3/4″ NPT pipe connection for straightforward installation into standard gas piping systems
- 120VAC coil voltage for compatibility with common commercial power supplies
- 4.6 Cv flow coefficient — supports up to 247,500 BTU/hr capacity
- 0–125 PSI operating pressure range for versatile application use
- Aluminum body construction — lightweight yet durable for long service life
- NBR (Buna-N) seals for reliable compatibility with air and fuel gas media
- NEMA 4X enclosure rating — provides protection against corrosion, dust, and water ingress
- Integrated junction box with screw terminals for simplified field wiring
- High-temperature coil design for reliable operation in elevated ambient conditions
Specifications
- SKU: JKF8215G33
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N.O.)
- Connection Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 4.6
- Capacity: 247,500 BTU/hr
- Pressure Range: 0–125 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
- Wiring: Junction Box with Screw Terminals
- Coil Type: High Temperature
- Media: Air / Fuel Gas
Application
The JKF8215G33 is ideal for use as a gas vent valve in commercial burner systems, boilers, furnaces, and other combustion equipment requiring a normally open, fail-safe shutoff or vent function. The NEMA 4X enclosure and high-temperature coil make it well-suited for harsh mechanical room environments and elevated-temperature installations.
