Description

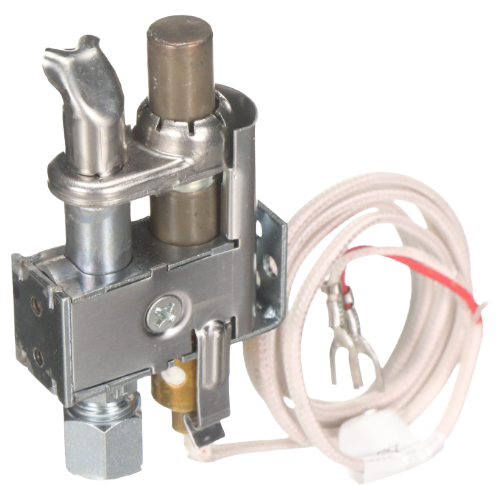

The ASCO PG9A41JTL020 is a precision-engineered 750-millivolt pilot generator designed for reliable standing-pilot ignition systems in gas-fired heating appliances. Engineered to deliver consistent millivolt output, this pilot generator powers gas valve controls without the need for external electrical power — making it an ideal solution for systems where self-generated power is required.
Key Features
- 750mV output for compatibility with millivolt-powered gas valve systems
- 90-degree left-angle cobra-type head for precise pilot flame positioning and simplified installation in tight spaces
- 2-wire configuration for straightforward wiring to compatible gas valves and controls
- 32-inch leads providing generous reach for flexible routing within the appliance
- F-type spade clip connectors for secure, tool-free termination at the gas valve
- Durable construction engineered to withstand the high-temperature environment of a pilot burner assembly
Application
The PG9A41JTL020 is suited for use in residential and light commercial gas heating appliances including boilers, water heaters, furnaces, and fireplaces that utilize a standing pilot ignition system. The 90-degree left cobra head orientation makes this generator well-suited for installations where space constraints require an angled approach to the pilot burner.
Specifications
- Brand: ASCO
- Part Number: PG9A41JTL020
- Output Voltage: 750mV
- Head Type: 90-degree left cobra
- Wiring: 2-wire
- Lead Length: 32 inches
- Connector Type: F spade clip
