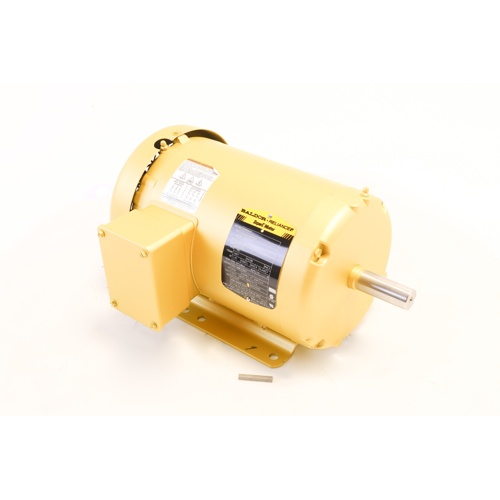

Baldor EM3554T 1.5HP 1760RPM 230/460V General Purpose Motor

Description

Baldor EM3554T General Purpose Motor Overview

The Baldor EM3554T is a heavy-duty general purpose electric motor engineered for demanding HVAC and industrial applications. Delivering 1.5 horsepower at 1760 RPM, this motor operates on a dual-voltage 230/460V supply, making it a versatile choice for a wide range of commercial and industrial installations. Baldor’s reputation for quality and efficiency is built into every component of the EM3554T, providing long service life and dependable performance.

Key Features

• 1.5 HP output for reliable power in HVAC and industrial applications
• 1760 RPM operating speed for consistent, smooth performance
• Dual-voltage 230/460V operation for flexible installation compatibility
• Three-phase power configuration for efficient energy use
• TEFC (Totally Enclosed Fan Cooled) enclosure protects against dust, moisture, and contaminants
• NEMA T-frame design for standardized mounting and easy replacement
• Rigid base mounting for secure, vibration-resistant installation
• Class F insulation for enhanced thermal protection and extended motor life
• Designed for continuous duty operation

Specifications

• Brand: Baldor
• Model / SKU: EM3554T
• Horsepower: 1.5 HP
• Speed: 1760 RPM
• Voltage: 230/460V
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frame: 145T (NEMA T-Frame)
• Phase: Three-Phase
• Duty: Continuous

Applications

• Commercial HVAC blower and fan assemblies
• Pumps and compressors
• Conveyor and material handling systems
• General industrial machinery
• Air handling units
