Description

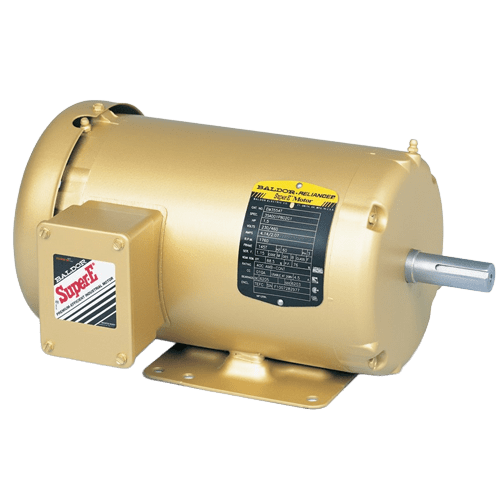

The Baldor EM3711T is a heavy-duty, totally enclosed fan-cooled (TEFC) general purpose motor engineered for demanding HVAC and industrial applications. Delivering 10 horsepower at 208-230/460V three-phase power, this motor is built to perform reliably in environments where moisture, dust, and contaminants are present — making it an ideal choice for commercial HVAC equipment, air handlers, pumps, compressors, and other power transmission applications.
The TEFC enclosure design prevents external air from circulating through the motor interior, protecting internal windings and components from dirt, debris, and humidity. An external fan provides continuous cooling across the motor frame, ensuring stable operating temperatures even under sustained load conditions.
Key Features
- 10 HP output for high-demand commercial and industrial applications
- Totally Enclosed Fan Cooled (TEFC) enclosure for superior environmental protection
- Dual voltage rating: 208-230/460V for flexible installation across single or dual voltage systems
- Three-phase power configuration for smooth, efficient operation
- T-frame design (EM3711T) for compatibility with standard NEMA mounting configurations
- Suitable for use with HVAC air handlers, pumps, fans, compressors, and conveyor systems
- Baldor quality construction for long service life and reduced maintenance
Specifications
- Brand: Baldor
- SKU / Model: EM3711T
- Horsepower: 10 HP
- Voltage: 208-230/460V
- Phase: 3-Phase
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: T-Frame (NEMA)
Applications
- Commercial HVAC air handling units
- Hydronic and process pumps
- Industrial fans and blowers
- Compressors and refrigeration equipment
- Conveyor and power transmission systems
