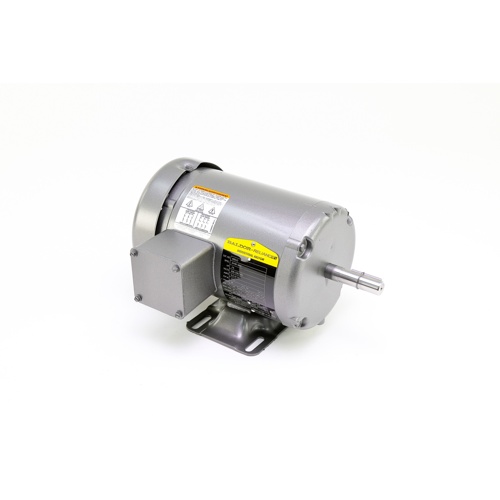

The Baldor M3542 is a heavy-duty, general purpose totally enclosed fan-cooled (TEFC) motor engineered for demanding industrial and HVAC applications. Delivering 3/4 horsepower at 1725 RPM, this three-phase motor is built to provide consistent, dependable performance in environments where moisture, dust, and contaminants are a concern.
Motor Overview
The TEFC enclosure design prevents outside air from circulating through the motor interior, making the M3542 an ideal choice for applications in harsh or dirty environments. The 56 frame designation ensures straightforward mounting compatibility with standard equipment and replacement applications across a wide range of HVAC and industrial systems.
Key Specifications
- Horsepower: 3/4 HP
- Speed: 1725 RPM
- Phase: 3-Phase
- Frame: 56
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Brand: Baldor
- SKU / Model: M3542
Features & Benefits
- TEFC enclosure protects internal windings from moisture, dust, and debris
- NEMA 56 frame for broad mounting compatibility and easy replacement
- Three-phase design delivers smooth, efficient operation with reduced vibration
- 1725 RPM synchronous speed suits a wide range of HVAC blower and fan drive applications
- Baldor quality construction for extended service life and reduced maintenance
- Suitable for use in commercial and light industrial HVAC systems, pumps, fans, and blowers
Applications
The Baldor M3542 is well-suited for use with commercial HVAC air handlers, blowers, pumps, compressors, and other motor-driven equipment requiring a reliable three-phase power source. Its TEFC enclosure and NEMA 56 frame make it a go-to replacement or upgrade motor for a variety of mechanical systems.
