Description

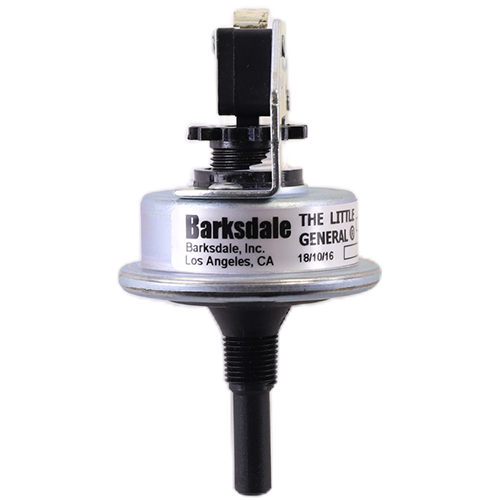

The Barksdale MSPS-EE05-Q71 is a compact mini pressure switch engineered for precise low-pressure sensing and control in HVAC, refrigeration, and light industrial applications. With a 1/2 to 5 PSI operating range and a normally open (N/O) SPST switching configuration, this unit delivers dependable performance where accurate pressure monitoring is critical.
Key Features
- Pressure range: 1/2 to 5 PSI
- Switch type: SPST (Single Pole, Single Throw), Normally Open (N/O)
- Port connection: 1/8″ Male Pipe Thread (MPT)
- Compact mini form factor for space-constrained installations
- Suitable for HVAC, refrigeration, and light industrial pressure control
- Reliable switching action for low-pressure monitoring circuits
Application
The MSPS-EE05-Q71 is ideal for use in systems requiring detection of low-pressure conditions, including air handling units, refrigeration circuits, pneumatic controls, and hydronic systems. The normally open configuration ensures the circuit activates upon reaching the set pressure threshold, making it well-suited for alarm, interlock, and safety shutdown applications.
Specifications
- Brand: Barksdale
- Model / SKU: MSPS-EE05-Q71
- Pressure Range: 1/2–5 PSI
- Switch Configuration: SPST, Normally Open (N/O)
- Process Connection: 1/8″ MPT
- Series: MSPS Mini Pressure Switch
