Description

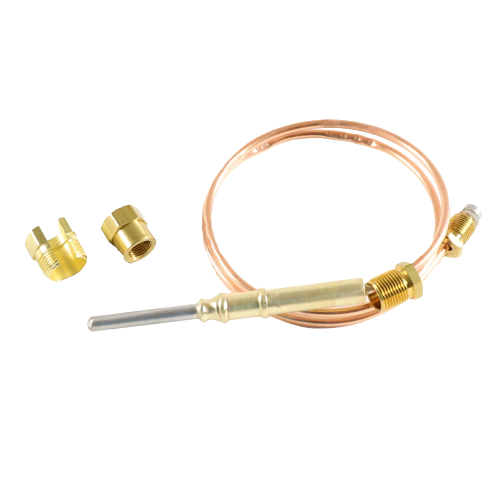

The BASO Gas Products K16BT-24 is a high-performance thermocouple engineered for dependable operation in standing pilot ignition systems. Designed to generate a consistent and accurate millivolt signal, this thermocouple ensures your pilot flame is properly sensed and your gas valve remains safely energized during normal operation.
Key Features
- High-performance thermocouple designed for standing pilot ignition systems
- Open circuit mV output range: 25–35 mV for reliable pilot flame sensing
- 24-inch lead length for flexible installation in a variety of appliances
- Generates the millivolt signal required to hold gas valves open during normal operation
- Direct replacement for worn or failed thermocouples in standing pilot applications
- Compatible with a wide range of gas-fired heating appliances using standing pilot ignition
Application
The K16BT-24 is ideal for use in furnaces, boilers, water heaters, and other gas-fired appliances equipped with standing pilot ignition systems. When the pilot flame is present, the thermocouple produces a millivolt signal that keeps the safety gas valve open. If the pilot extinguishes, the signal drops and the valve closes, preventing unburned gas from entering the appliance — a critical safety function.
Specifications
- Brand: BASO Gas Products
- SKU: K16BT-24
- Type: High Performance Thermocouple
- Open Circuit mV Range: 25–35 mV
- Lead Length: 24 inches
- Application: Standing Pilot Ignition Systems
