Description

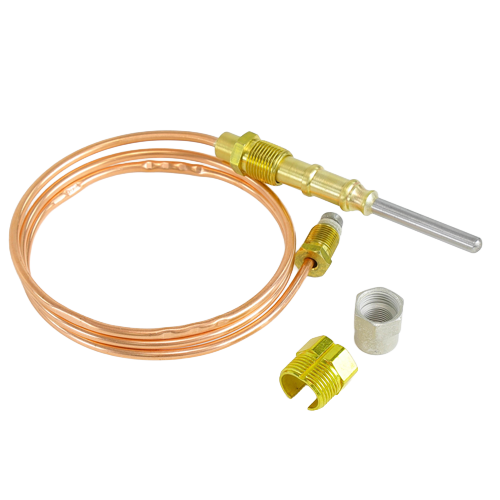

The BASO Gas Products K16BT-30 is a high performance thermocouple engineered for reliable use in standing pilot ignition systems. Generating a consistent open circuit output in the 25–35 mV range, this thermocouple provides the millivoltage signal necessary to hold a gas valve open and keep a pilot flame lit — a critical function in safe, dependable appliance operation.
With a 30-inch lead length, the K16BT-30 offers the flexibility needed to reach gas valve connections in a wide variety of heating appliances, including furnaces, boilers, water heaters, and other gas-fired equipment that rely on standing pilot ignition.
Key Features
- High performance thermocouple for standing pilot ignition systems
- Open circuit mV range: 25–35 mV
- Lead length: 30 inches
- Compatible with standard gas valve thermocouple connections
- Suitable for use in furnaces, boilers, water heaters, and other gas-fired appliances
- Reliable millivoltage output to maintain pilot flame and gas valve operation
Application
Designed specifically for standing pilot ignition systems, the K16BT-30 thermocouple senses pilot flame heat and converts it into a millivolt signal that energizes the gas valve. This ensures the main burner can only operate when a proven pilot flame is present, providing an essential safety function in gas-fired heating equipment.
