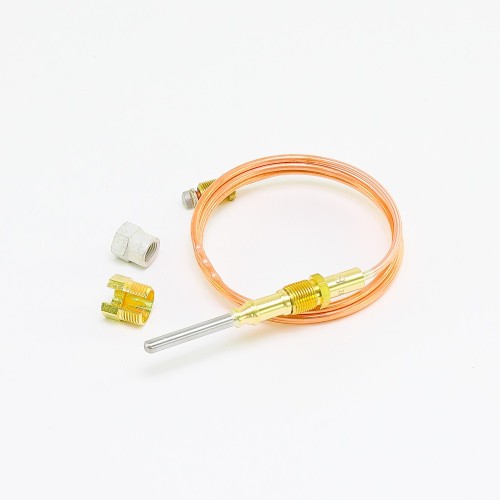

BASO Gas Products K16BT-36 High Performance Thermocouple
The BASO Gas Products K16BT-36 is a high performance thermocouple engineered for reliable operation in standing pilot ignition systems. With a 36-inch lead length and a 25–35 mV open circuit output range, this thermocouple delivers the consistent millivolt signal needed to keep gas valve safety circuits energized and pilot flames proven. It is an ideal replacement or upgrade component for residential and light commercial heating appliances that rely on standing pilot ignition.
Key Features
- High performance thermocouple designed for standing pilot ignition systems
- Open circuit output range: 25–35 mV for dependable gas valve actuation
- 36-inch (36″) lead length provides flexible installation reach
- Compatible with a wide range of gas-fired appliances including furnaces, boilers, water heaters, and fireplaces
- Durable construction for long service life in demanding heating environments
- Drop-in replacement for worn or failed thermocouples in standing pilot systems
Specifications
- Brand: BASO Gas Products
- Model / SKU: K16BT-36
- Type: High Performance Thermocouple
- Open Circuit mV Range: 25–35 mV
- Lead Length: 36 inches
- Application: Standing Pilot Ignition Systems
Application
The K16BT-36 is used in standing pilot ignition systems where a continuously burning pilot flame generates a millivolt signal through the thermocouple. This signal holds the gas valve open, providing a proven safety interlock. When the pilot flame is extinguished, the thermocouple cools, the millivolt output drops, and the gas valve closes — preventing unburned gas from accumulating. This thermocouple is suitable for use in gas furnaces, boilers, water heaters, unit heaters, and fireplace gas logs equipped with standing pilot controls.
