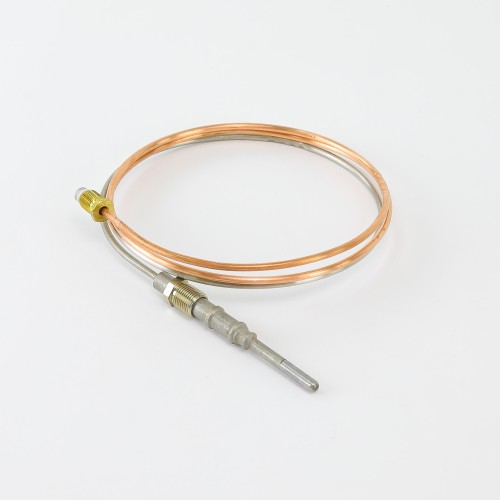

BASO Gas Products K16RA-48 Nickel Plated Thermocouple
The BASO Gas Products K16RA-48 is a nickel plated thermocouple engineered for reliable performance in standing pilot ignition systems. With a 48-inch lead length and a 25–35 mV open circuit output range, this thermocouple delivers the consistent millivolt signal required to hold gas valve safety circuits open during normal burner operation. Its nickel plating provides added durability and resistance to the harsh thermal environments found in furnaces, boilers, water heaters, and other gas-fired appliances that rely on standing pilot ignition.
Key Features
- Nickel plated construction for enhanced durability and corrosion resistance
- Open circuit mV range: 25–35 mV for dependable gas valve actuation
- 48-inch lead length for flexible installation reach
- Designed for use in standing pilot ignition systems
- Compatible with a wide range of gas-fired heating appliances
- Direct replacement for worn or failed thermocouples in existing systems
Application
The K16RA-48 is specifically designed for standing pilot ignition systems, where the thermocouple senses pilot flame presence and generates a millivolt signal to keep the main gas valve energized. It is suitable for use in residential and light commercial furnaces, boilers, water heaters, and other gas appliances equipped with a standing pilot safety circuit.
Specifications
- Brand: BASO Gas Products
- SKU: K16RA-48
- Finish: Nickel Plated
- Open Circuit Output: 25–35 mV
- Lead Length: 48 inches
- Application: Standing Pilot Ignition Systems
