Description

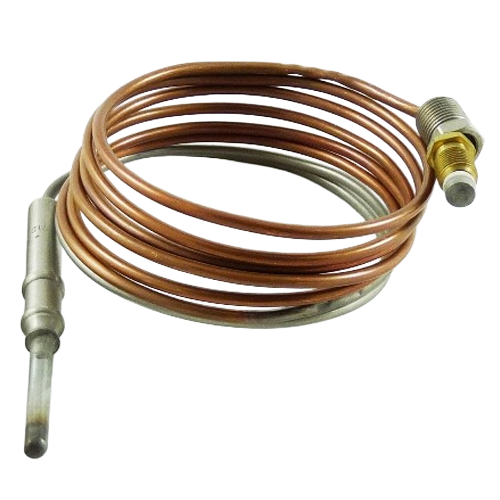

The BASO Gas Products K16RA-72 is a nickel plated thermocouple engineered for reliable performance in standing pilot ignition systems. With a generous 72-inch lead length, this thermocouple provides the flexibility needed for a wide range of appliance configurations, making routing and installation straightforward even in tight or complex setups.
How It Works
A thermocouple is a critical safety device in standing pilot ignition systems. It generates a small millivoltage signal — in the 25–35 mV open circuit range — when heated by the pilot flame. This signal holds the gas valve open, allowing fuel to flow to the main burner. If the pilot flame is extinguished, the thermocouple cools, the millivoltage drops, and the gas valve closes automatically, preventing unburned gas from accumulating.
Key Features
- Nickel plated construction for enhanced durability and corrosion resistance
- 25–35 mV open circuit millivoltage output range
- 72-inch (6 ft) lead length for flexible routing and easy installation
- Designed for use in standing pilot ignition systems
- Compatible with a wide range of gas-fired appliances including furnaces, boilers, and water heaters
- BASO Gas Products quality engineering for dependable pilot safety control
Specifications
- Brand: BASO Gas Products
- SKU: K16RA-72
- Finish: Nickel Plated
- Open Circuit mV Range: 25–35 mV
- Lead Length: 72 inches (6 feet)
- Application: Standing Pilot Ignition Systems
Application
The K16RA-72 is ideal for HVAC technicians and service professionals replacing worn or failed thermocouples in residential and light commercial gas-fired equipment. The 72-inch lead accommodates installations where the pilot assembly and gas valve are separated by a greater distance, eliminating the need for extension leads or adapters.
