Description

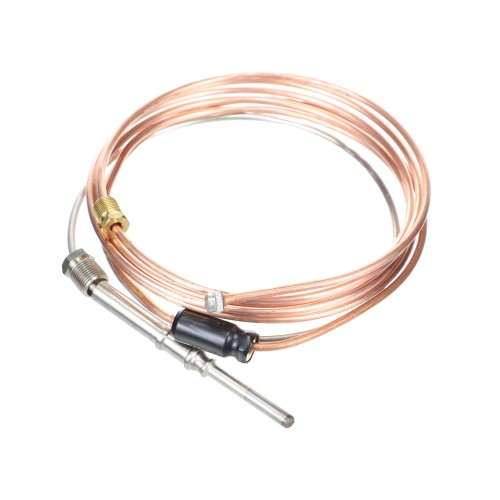

The BASO Gas Products K16RM-96 is a nickel plated thermocouple engineered for reliable performance in standing pilot ignition systems. With a generous 96-inch lead length, this thermocouple provides flexible installation in a wide range of heating appliances including furnaces, boilers, water heaters, and gas fireplaces.
Key Features
- Nickel plated construction for enhanced durability and corrosion resistance
- 25–35 mV open circuit output range for compatibility with standard millivolt gas valve systems
- 96-inch (8-foot) lead length for versatile, reach-friendly installation
- Designed for use in standing pilot ignition systems
- Direct replacement for worn or failed thermocouples in gas-fired appliances
How It Works
A thermocouple is a safety device that generates a small millivolt signal when its tip is heated by the standing pilot flame. This signal holds the gas valve open, allowing fuel to flow to the main burner. If the pilot flame is extinguished, the thermocouple cools, the millivolt signal drops, and the gas valve closes automatically — preventing unburned gas from accumulating. The K16RM-96 delivers a 25–35 mV open circuit output, meeting the requirements of most standard millivolt gas valve applications.
Applications
- Residential and commercial gas furnaces
- Gas-fired boilers
- Water heaters with standing pilot ignition
- Gas fireplaces and logs
- Unit heaters and other gas appliances using standing pilot systems
Specifications
- Brand: BASO Gas Products
- Model / SKU: K16RM-96
- Construction: Nickel Plated
- Open Circuit mV Range: 25–35 mV
- Lead Length: 96 inches (8 feet)
- Ignition System Type: Standing Pilot
