Description

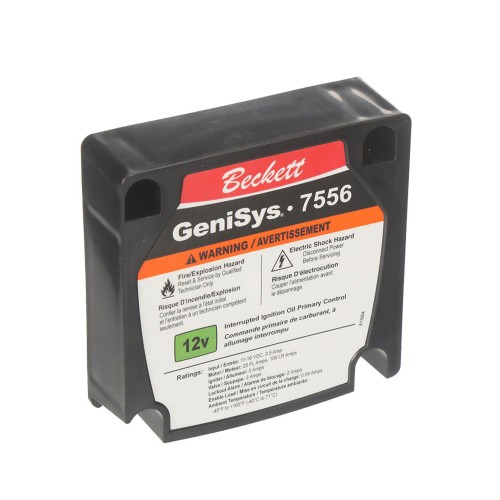

The Beckett 7556A0000U is a 12VDC burner control engineered for precise ignition sequencing and dependable combustion management in oil-fired heating systems. Designed to Beckett’s exacting standards, this control module delivers consistent burner operation and flame supervision to keep heating systems running safely and efficiently.
Key Features
- Operating voltage: 12VDC for compatibility with low-voltage burner applications
- Timing sequence: 15/0/0 seconds — 15-second trial for ignition (TFI), 0-second pre-purge, 0-second post-purge
- Provides reliable flame safeguard and burner sequencing control
- Engineered for use with Beckett oil burner systems
- Compact design for straightforward installation and serviceability
- Manufactured by Beckett, a trusted leader in combustion control technology
Product Specifications
- SKU: 7556A0000U
- Brand: Beckett
- Operating Voltage: 12VDC
- Timing Sequence: 15/0/0 Seconds (TFI / Pre-Purge / Post-Purge)
- Control Type: Burner Control / Flame Safeguard
Application
The Beckett 7556A0000U burner control is ideal for residential and light commercial oil-fired heating equipment requiring a 12VDC control circuit with a 15-second trial-for-ignition period. It ensures safe startup sequencing, flame monitoring, and lockout protection — essential functions for maintaining system safety and code compliance.
