Belimo AFBUP-X1 24-240V On/Off Spring Return 180 In-lb Damper Actuator

Description

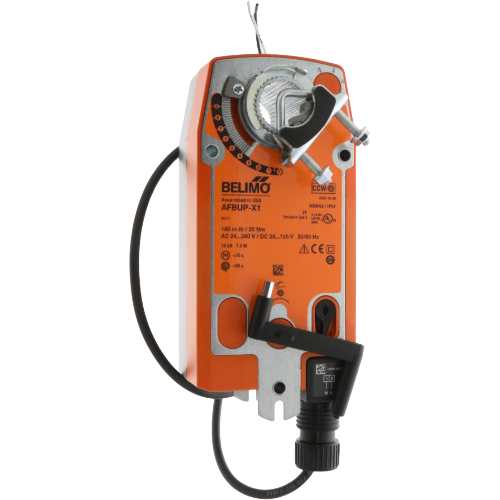

Belimo AFBUP-X1 Universal Voltage Spring Return Damper Actuator

The Belimo AFBUP-X1 is a heavy-duty, spring return damper actuator engineered for dependable On/Off control in commercial and industrial HVAC applications. With a wide universal voltage range of 24–240V AC/DC, this actuator eliminates the need for a dedicated transformer or voltage-specific wiring, simplifying installation and reducing overall system cost. The 180 in-lb torque output makes it well-suited for large dampers and demanding applications where consistent, reliable actuation is critical.

Key Features

• Universal voltage input: 24–240V AC/DC — no step-down transformer required
• On/Off control for straightforward open/close damper operation
• Spring return (SR) fail-safe function returns damper to safe position on power loss
• 180 in-lb (20 Nm) torque output for large or high-resistance dampers
• Compact, rugged housing designed for long service life
• Manual override for easy commissioning and maintenance
• Belimo’s proven direct-coupled design — no crank arm or linkage required

Application Highlights

• Ideal for supply, return, and exhaust air dampers in AHUs and rooftop units
• Suitable for commercial building automation and HVAC zoning systems
• Compatible with a wide range of standard damper shaft sizes
• Spring return action ensures fail-safe damper positioning during power outages

Product Specifications

• Brand: Belimo
• Model / SKU: AFBUP-X1
• Supply Voltage: 24–240V AC/DC (universal)
• Control Type: On/Off
• Actuator Type: Spring Return (SR)
• Torque Output: 180 in-lb
• Mounting: Direct-coupled, no linkage required

Trust Belimo’s industry-leading actuator technology to deliver precise, fail-safe damper control in your next HVAC project. The AFBUP-X1 is backed by Belimo’s commitment to quality and long-term reliability.
