Description

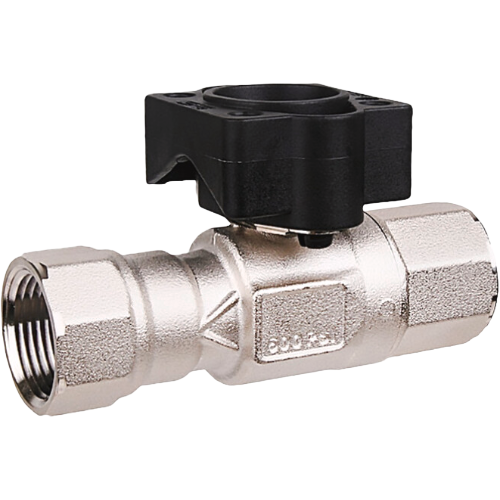

The Belimo B215HT186 is a precision-engineered 2-way ball valve purpose-built for demanding hydronic and steam applications. Featuring a robust brass body paired with a stainless steel ball and stem, this valve is designed to withstand the rigors of high-temperature water service up to 266°F and low-pressure steam systems, making it an ideal choice for commercial and industrial HVAC installations.
With a 1/2″ NPT connection and a flow coefficient (Cv) of 1.86, the B215HT186 delivers accurate, repeatable flow control through its equal percentage flow characteristic — ensuring precise modulation across the full range of valve travel. The valve is also rated for use with glycol solutions up to 60%, providing added versatility for freeze-protection applications in hydronic systems.
Designed to pair seamlessly with Belimo actuators, this valve body is a trusted component in building automation and hydronic control systems where reliability and long service life are non-negotiable.
Key Features
- 2-way, equal percentage flow characteristic for precise modulation
- 1/2″ NPT end connections for easy installation
- Flow coefficient (Cv): 1.86
- Brass valve body for corrosion resistance and durability
- Stainless steel ball and stem for high-temperature performance
- Rated for high-temperature water up to 266°F (130°C) maximum
- Suitable for low-pressure steam applications
- Compatible with glycol solutions up to 60%
- Designed for use with Belimo actuators
Specifications
- Brand: Belimo
- SKU: B215HT186
- Valve Type: Ball Valve, 2-Way
- Connection Size: 1/2″
- Connection Type: NPT
- Flow Characteristic: Equal Percentage
- Cv (Flow Coefficient): 1.86
- Body Material: Brass
- Ball & Stem Material: Stainless Steel
- Maximum Temperature: 266°F (High Temperature Water)
- Application: High Temperature Water, Low Pressure Steam
- Glycol Compatibility: Up to 60% Solution
Applications
- High-temperature hydronic heating systems
- Low-pressure steam HVAC systems
- Glycol-based freeze protection loops
- Commercial and industrial building automation
- Fan coil units, air handling units, and terminal equipment
