Description

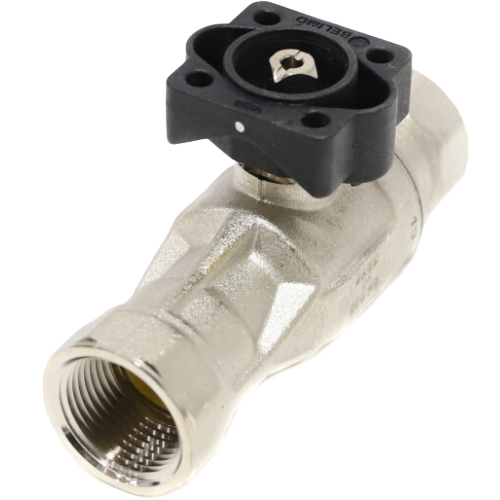

The Belimo B225HT731 is a high-performance 2-way ball valve engineered for demanding hydronic and steam applications where standard valves fall short. Built with a brass body and stainless steel ball and stem, this valve delivers exceptional durability and corrosion resistance in high-temperature water systems up to 266°F (130°C) and low-pressure steam environments.
With a 1″ NPT connection and a 7.31 Cv flow coefficient, the B225HT731 provides precise equal percentage flow characteristics, making it ideal for modulating control in HVAC hydronic systems, fan coils, heat exchangers, and terminal units. Its compatibility with glycol solutions up to 60% concentration adds versatility for freeze-protection applications in commercial and industrial settings.
Designed to pair with Belimo actuators, this valve is a reliable choice for building automation and energy management systems requiring accurate, repeatable flow control.
Key Features
- 2-way, equal percentage flow characteristic for precise modulating control
- 1″ NPT end connections for easy installation
- 7.31 Cv flow coefficient
- Brass body construction for strength and longevity
- Stainless steel ball and stem for superior corrosion resistance
- Rated for high-temperature water up to 266°F (130°C) maximum
- Suitable for low-pressure steam applications
- Compatible with glycol solutions up to 60% concentration
- Designed for use with Belimo actuators in building automation systems
Specifications
- Brand: Belimo
- SKU: B225HT731
- Valve Type: Ball Valve, 2-Way
- Connection Size: 1″ NPT
- Flow Coefficient (Cv): 7.31
- Flow Characteristic: Equal Percentage
- Body Material: Brass
- Ball & Stem Material: Stainless Steel
- Maximum Temperature: 266°F (High Temperature Water)
- Application: High Temperature Water, Low Pressure Steam
- Glycol Compatibility: Up to 60% Glycol Solution
Applications
- High-temperature hydronic heating systems
- Low-pressure steam distribution and control
- Fan coil units and air handling units
- Heat exchangers and terminal units
- Glycol-based freeze protection systems
- Commercial and industrial building automation
