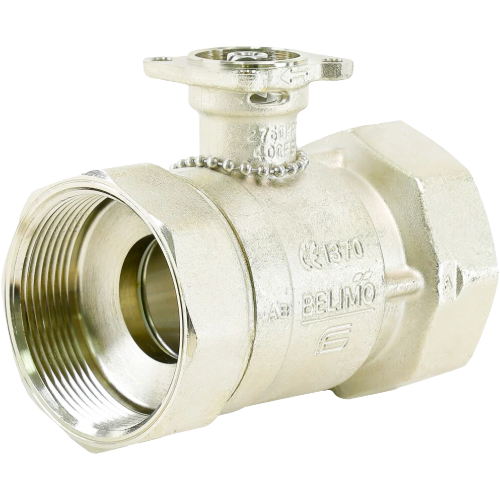

Belimo B248 Ball Valve, 2″ NPT, 2-Way, 29 Cv, Equal Percentage Flow

Description

Overview

The Belimo B248 is a 2-inch NPT, 2-way ball valve engineered for reliable flow control in chilled water and hot water HVAC systems. With a 29 Cv flow coefficient and equal percentage flow characteristic, this valve delivers precise, proportional control across its full operating range — making it an ideal choice for variable-flow hydronic applications where accurate temperature regulation is critical.

Durable, Corrosion-Resistant Construction

Built to withstand demanding commercial and industrial environments, the B248 features a nickel-plated forged brass body paired with a stainless steel ball and stem. This combination provides excellent resistance to corrosion and wear, ensuring long service life in both chilled and hot water systems. The valve is rated for fluid temperatures up to 212°F (100°C) and is compatible with glycol solutions of up to 60% concentration, making it suitable for freeze-protection applications.

Key Specifications

• Brand: Belimo
• Model / SKU: B248
• Valve Type: Ball Valve
• Pipe Size: 2 inch
• Connection Type: NPT (National Pipe Thread)
• Flow Coefficient (Cv): 29
• Valve Configuration: 2-Way
• Flow Characteristic: Equal Percentage
• Body Material: Nickel-Plated Forged Brass
• Ball and Stem Material: Stainless Steel
• Maximum Fluid Temperature: 212°F (100°C)
• Glycol Compatibility: Up to 60% glycol solution
• Application: Chilled Water and Hot Water HVAC Systems

Applications

• Chilled water coil control in air handling units (AHUs)
• Hot water heating coil control
• Fan coil unit (FCU) water-side control
• Variable air volume (VAV) and variable flow hydronic systems
• Glycol-based freeze protection systems
• Commercial and industrial building automation systems

Why Choose Belimo

Belimo is a globally recognized leader in HVAC actuator and valve technology, known for precision engineering, energy efficiency, and long-term reliability. The B248 is designed to be paired with Belimo actuators, providing a complete, factory-matched valve and actuator assembly that simplifies installation and ensures optimal system performance.

Order Today

The Belimo B248 is available now at Jackson Systems. Our team of HVAC professionals is ready to help you select the right valve and actuator combination for your application. Contact us or order online for fast, reliable shipping.
