Description

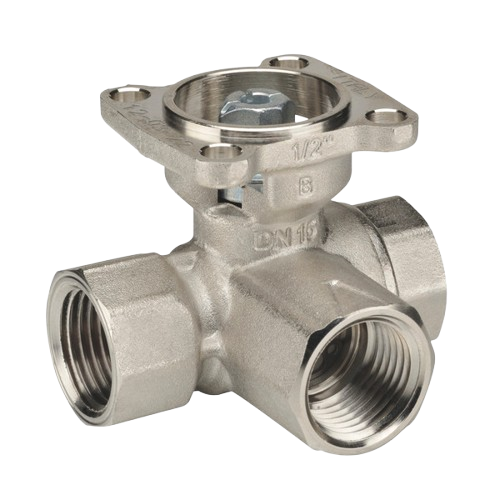

The Belimo B307B is a precision-engineered 3-way ball valve designed for reliable flow control in chilled and hot water HVAC applications. Built to withstand demanding hydronic system conditions, this valve features a durable nickel-plated forged brass body paired with a chrome-plated brass ball and nickel-plated brass stem for exceptional corrosion resistance and long service life.
Flow Characteristics
The B307B utilizes a dual-port flow design engineered for balanced system performance:
- A-port: Equal percentage flow characteristic for precise, proportional control across the full stroke range
- B-port: Modified flow characteristic designed to maintain constant common port flow, ensuring stable system pressure and consistent performance
Key Specifications
- Valve Type: 3-Way Ball Valve
- Pipe Size: 1/2″ NPT
- Flow Coefficient (Cv): 0.3
- Maximum Temperature Rating: 250°F
- Body Material: Nickel-Plated Forged Brass
- Ball Material: Chrome-Plated Brass
- Stem Material: Nickel-Plated Brass
- Connection Type: NPT (National Pipe Thread)
- Application: Chilled Water and Hot Water Systems
Construction & Durability
The nickel-plated forged brass body provides superior strength and resistance to corrosion in both chilled and hot water environments. The chrome-plated brass ball ensures a tight, leak-free seal over thousands of operating cycles, while the nickel-plated brass stem resists wear and corrosion for long-term reliability. This robust construction makes the B307B an ideal choice for commercial and light industrial HVAC hydronic systems.
Applications
- Chilled water fan coil units
- Hot water heating coils
- Air handling units (AHUs)
- Hydronic mixing and diverting applications
- Building automation and control systems
Why Choose Belimo
Belimo is a globally recognized leader in HVAC actuator and valve technology. The B307B is designed to pair seamlessly with Belimo actuators, delivering a complete, factory-matched valve-actuator assembly for simplified installation, commissioning, and long-term performance in commercial building systems.
