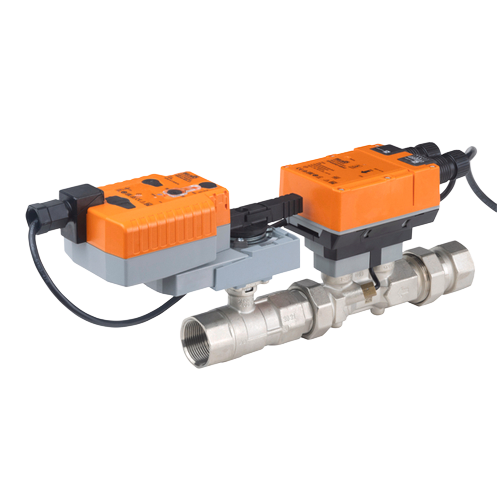

Belimo EP100+LRX-E 2-Way PICCV 24V 1″ 18.2 GPM Valve Assembly

Description

The Belimo EP100+LRX-E is a factory-assembled 2-Way Pressure Independent Characterized Control Valve (PICCV) combining the EP100 valve body with the LRX-E electronic fail-safe actuator into a single, ready-to-install hydronic control solution. Designed for commercial and industrial HVAC hydronic systems, this assembly delivers precise, pressure-independent flow control — eliminating the need for separate balancing valves and simplifying system commissioning.

Pressure Independent Performance

As a PICCV, the EP100+LRX-E integrates a differential pressure regulator directly into the valve body. This built-in pressure regulation maintains a consistent flow rate regardless of system pressure fluctuations, ensuring accurate zone control and eliminating the hydronic balancing challenges common in variable-flow systems.

Key Specifications

• SKU: EP100+LRX-E
• Valve Type: 2-Way Pressure Independent Characterized Control Valve (PICCV)
• Valve Size: 1 inch
• Maximum Flow Rate: 18.2 GPM
• Actuator Supply Voltage: 24V AC/DC
• Actuator Series: LRX-E (Electronic Fail-Safe)
• Configuration: Factory-assembled valve and actuator combination

LRX-E Actuator Features

• Electronic fail-safe function returns valve to a defined position on power loss
• 24V AC/DC power supply for flexible integration with building automation systems
• Compatible with standard 0–10V or 2–10V control signals
• Manual override capability for commissioning and maintenance
• Compact, direct-coupled design — no couplings or linkages required

System Benefits

• Eliminates the need for separate differential pressure control valves and manual balancing valves
• Simplifies hydronic system design and reduces installed component count
• Ensures consistent flow at every load condition — ideal for variable-flow chilled and hot water systems
• Supports energy efficiency by enabling accurate load-based flow modulation
• Factory-assembled and tested for reliable, plug-and-play installation

Typical Applications

• Fan coil units (FCUs)
• Air handling units (AHUs)
• Chilled water and hot water distribution systems
• Variable air volume (VAV) terminal units with hydronic reheat
• Commercial building automation and energy management systems

The Belimo EP100+LRX-E is backed by Belimo’s global reputation for quality hydronic and HVAC control products, making it a trusted choice for mechanical contractors, engineers, and building automation professionals.
