Description

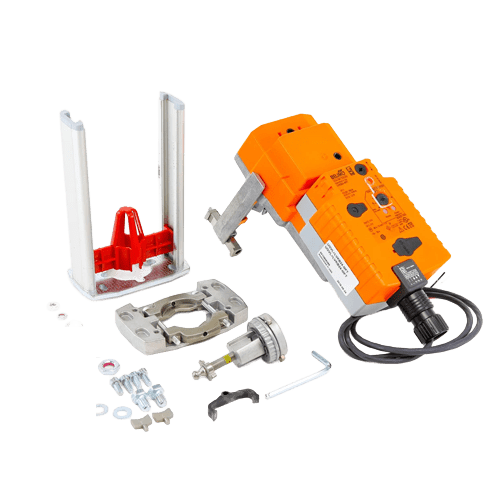

The Belimo UGVL+LVKB24-MFT is a factory-matched combination of Belimo’s UGVL universal globe valve body paired with the LVKB24-MFT electronic fail-safe actuator. Engineered for demanding commercial and industrial HVAC hydronic control applications, this assembly delivers precise modulating control of heating and cooling coil circuits with the added safety of an electronic fail-safe return function.
Key Features
- Electronic fail-safe (ElecFailSafe) actuator returns valve to a defined safe position upon loss of power or control signal
- 112 lb-in (12.6 Nm) actuator force rating for reliable valve authority across a wide range of system pressures
- 24V AC/DC power supply for broad compatibility with commercial building automation and HVAC control systems
- MFT (Multi-Function Technology) allows field-selectable control signal inputs including 0–10 VDC, 2–10 VDC, 4–20 mA, and floating point
- Factory-matched valve and actuator combination ensures optimized performance and simplified installation
- UGVL universal globe valve body designed for use with hot water, chilled water, and steam (low-pressure) hydronic systems
- Compact, direct-coupled design eliminates linkages and reduces maintenance requirements
- Manual override function for commissioning and emergency operation
Specifications
- SKU: UGVL+LVKB24-MFT
- Brand: Belimo
- Actuator Model: LVKB24-MFT
- Valve Series: UGVL (Universal Globe Valve)
- Supply Voltage: 24V AC/DC
- Actuator Force: 112 lb-in
- Fail-Safe Type: Electronic Fail-Safe
- Control Signal: Multi-Function Technology (MFT) — field-selectable
Applications
- Commercial HVAC hydronic heating and cooling coil control
- Air handling units (AHUs) and fan coil units (FCUs)
- Building automation system (BAS) integration
- Variable flow hydronic systems requiring reliable fail-safe operation
The Belimo UGVL+LVKB24-MFT is an ideal solution for engineers and contractors seeking a pre-matched, high-performance globe valve and actuator assembly that simplifies specification, procurement, and installation while delivering the dependable fail-safe operation required in critical HVAC applications.
