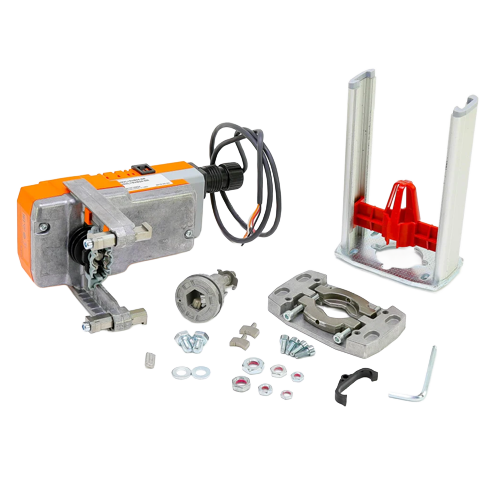

Belimo UGVL+SVB24-SR Overview
The Belimo UGVL+SVB24-SR is a complete globe valve actuator and universal linkage assembly engineered for precise modulating control in commercial HVAC and hydronic systems. Combining the SVB24-SR actuator with the UGVL universal globe valve linkage, this factory-matched combination delivers reliable, repeatable valve positioning for heating and cooling applications.
Key Features
- 24 VAC/DC power supply for broad compatibility with commercial control systems
- 337 lb-in (38 Nm) nominal torque output for dependable actuation of globe valves under demanding system pressures
- Non-spring return design — valve position is maintained electronically, eliminating spring fatigue over time
- Modulating control signal (2–10V DC or 4–20 mA) enables precise, proportional valve positioning
- UGVL universal globe valve linkage kit included for simplified field installation and compatibility with a wide range of globe valve body sizes
- Synchronous motor technology for quiet, smooth, and energy-efficient operation
- Manual override function allows valve positioning during commissioning or power outages
- Compact, rugged housing suitable for concealed or exposed mechanical room installations
Typical Applications
- Hydronic heating and cooling coil control in AHUs and fan coil units
- Chilled water and hot water distribution systems
- Variable flow hydronic systems requiring accurate flow modulation
- Building automation and DDC control system integration
Why Choose Belimo
Belimo is the global leader in actuator and control valve technology for HVAC applications. The SVB24-SR actuator series is trusted by mechanical contractors and building automation engineers for its long service life, consistent performance, and ease of installation. The UGVL linkage ensures a secure, vibration-resistant connection between the actuator and globe valve body, reducing installation time and callbacks.
Product Specifications
- SKU: UGVL+SVB24-SR
- Brand: Belimo
- Supply Voltage: 24 VAC/DC
- Torque: 337 lb-in (38 Nm)
- Control Type: Modulating (Non-Spring Return)
- Linkage: UGVL Universal Globe Valve Linkage
- Actuator Series: SVB
