Description
Belimo UGVL+SVKB24-MFT Overview

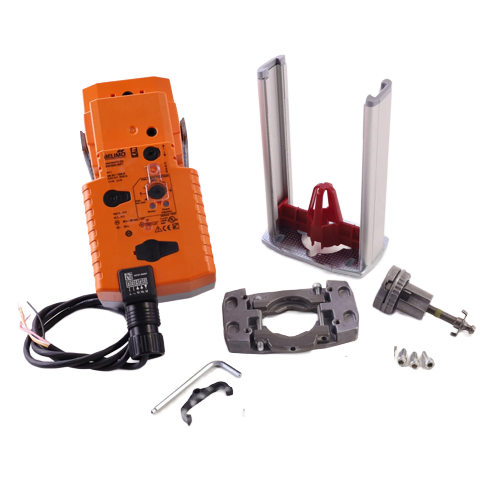

The Belimo UGVL+SVKB24-MFT is a factory-assembled combination of a Belimo UGVL globe valve body and the SVKB24-MFT proportional spring-return actuator, complete with a dedicated linkage kit for seamless integration. Designed for commercial and industrial HVAC hydronic systems, this assembly delivers precise flow control in heating and cooling applications including air handling units, fan coil units, and terminal equipment.
Key Features
- 24 VAC/DC power supply for broad compatibility with building automation and HVAC control systems
- Proportional (modulating) control signal for accurate, stepless valve positioning
- Spring-return (S/R) fail-safe operation — returns to a defined position on power loss for system protection
- 337 lb-in (38 Nm) actuator torque for reliable operation against high differential pressures
- Factory-matched linkage kit included — simplifies installation and ensures proper actuator-to-valve coupling
- Compact, robust design suitable for tight mechanical room installations
- Manual override for commissioning and maintenance convenience
- Position indicator for quick visual confirmation of valve status
- Belimo’s proven globe valve body with characterized control for superior flow regulation
Application
The UGVL+SVKB24-MFT assembly is ideal for use in commercial HVAC hydronic piping systems where precise modulating control of hot water, chilled water, or condenser water flow is required. It is well-suited for integration with DDC building automation systems, energy management systems, and variable air volume (VAV) applications.
Specifications
- Brand: Belimo
- SKU: UGVL+SVKB24-MFT
- Supply Voltage: 24 VAC/DC
- Control Type: Proportional (Modulating)
- Actuator Type: Spring-Return
- Torque: 337 lb-in
- Linkage: Included
- Valve Body: UGVL Series Globe Valve
- Actuator Model: SVKB24-MFT
Why Choose Belimo?
Belimo is a globally recognized leader in actuator and valve technology for HVAC applications. Their products are engineered for long service life, energy efficiency, and ease of installation — making them the preferred choice of mechanical contractors, engineers, and building owners worldwide.
