Description

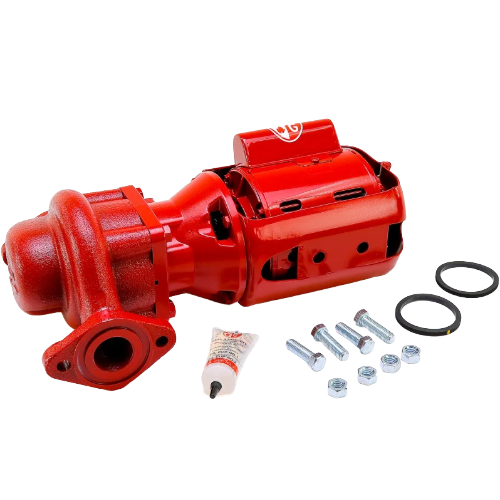

Bell & Gossett 102210 Three-Piece Oil Lubricated Circulator Pump (Model HV NFI)
The Bell & Gossett 102210 is a dependable, three-piece oil-lubricated circulator pump engineered for hydronic heating systems where reliable water circulation is critical. Built around a cast iron body paired with a non-ferrous impeller, this circulator delivers long-lasting performance while resisting corrosion in closed-loop hydronic applications. The built-in overload protection safeguards the motor against electrical faults, reducing downtime and protecting your investment.
Key Features
- Motor Output: 1/6 HP for efficient, low-energy hydronic circulation
- Voltage: 115V AC single-phase operation
- Built-in overload protection for enhanced motor safety and reliability
- Cast iron body construction for durability and long service life
- Non-ferrous impeller resists corrosion in closed hydronic systems
- Three-piece design allows easy in-line servicing and maintenance without disturbing piping
- Oil-lubricated bearing assembly for quiet, smooth operation
- Compatible with 1″, 1-1/4″, and 1-1/2″ flanges for versatile installation
- Model: HV NFI
Application & Compatibility
The Bell & Gossett 102210 is ideally suited for residential and light commercial hydronic heating systems, including hot water boiler loops, radiant floor heating, and baseboard heating circuits. Its three-piece construction and multi-flange compatibility make it a flexible drop-in solution for new installations or replacement of existing circulators. The non-ferrous impeller is specifically designed to minimize galvanic corrosion when used in systems with mixed metals.
Specifications
- SKU: 102210
- Brand: Bell & Gossett
- Model: HV NFI
- Horsepower: 1/6 HP
- Voltage: 115V AC
- Motor Protection: Built-in overload protection
- Body Material: Cast iron
- Impeller Material: Non-ferrous
- Lubrication: Oil lubricated
- Configuration: Three-piece
- Flange Compatibility: 1″, 1-1/4″, 1-1/2″
