Description

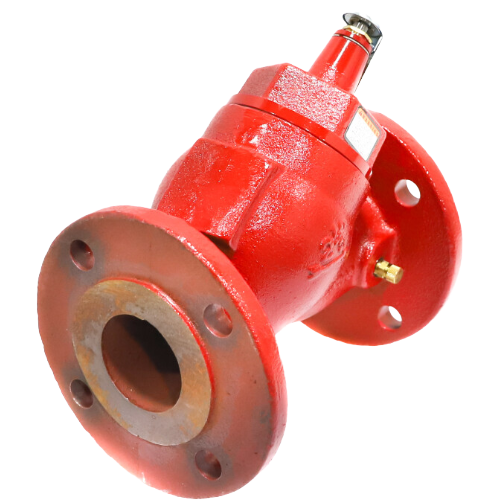

The Bell & Gossett 132122 is a straight-pattern Triple Duty Valve engineered to consolidate three essential hydronic system functions into a single, compact inline assembly. Featuring a 2-1/2″ ANSI 125 flanged connection and a cast iron body with a bronze seat, this valve is designed for dependable, long-term performance in commercial and industrial hydronic heating and cooling applications.
Three Functions in One Valve
The 132122 combines three critical hydronic circuit functions, eliminating the need for separate components and reducing installation time, material costs, and potential leak points:
- Soft Seat Nonslam Check Valve — Prevents reverse flow with a quiet, water-hammer-free design that protects pumps and system components from backflow damage
- Throttling Valve — Allows precise flow adjustment to balance system circuits and optimize hydronic performance
- Calibrated Balance Valve with Shutoff — Provides accurate, repeatable flow balancing with a built-in shutoff capability for system isolation during maintenance or commissioning
Key Specifications
- SKU: 132122
- Connection Size: 2-1/2″
- Connection Type: ANSI 125 Flanged
- Body Material: Cast Iron
- Seat Material: Bronze
- Maximum Recommended Flow: 390 GPM
- Pattern: Straight
- Check Valve Type: Soft Seat Nonslam
Design & Construction Highlights
- Cast iron body delivers robust durability for high-demand commercial hydronic systems
- Bronze seat ensures long-lasting sealing integrity and corrosion resistance
- Straight-pattern design simplifies inline installation with minimal pressure drop
- ANSI 125 flanged ends provide secure, standardized connections compatible with common hydronic piping systems
- Nonslam check mechanism eliminates water hammer for quieter, safer system operation
- Calibrated balance valve allows technicians to set and verify flow rates accurately during system commissioning
Ideal Applications
- Commercial and industrial hydronic heating systems
- Chilled water cooling distribution systems
- Pump discharge protection and flow control
- Building HVAC primary/secondary loop configurations
- Systems requiring combined check, throttle, and balance functionality in a single valve station
The Bell & Gossett 132122 Triple Duty Valve is a trusted solution for HVAC engineers and mechanical contractors seeking to streamline hydronic system design without sacrificing performance or reliability. Its multi-function capability reduces installed cost while maintaining the precision flow control that Bell & Gossett products are known for.
