Description

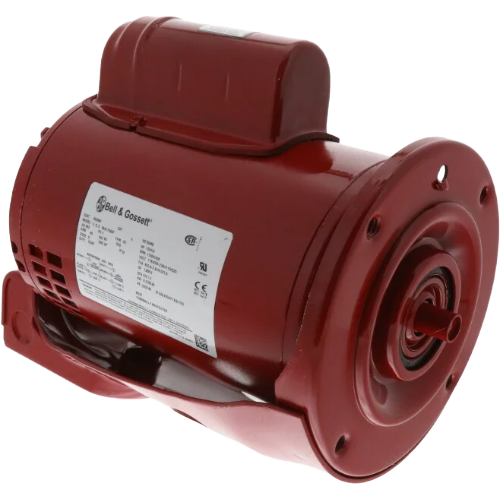

Bell & Gossett 169228 Replacement Motor Overview
The Bell & Gossett 169228 is a versatile single-phase replacement motor engineered for reliable performance in hydronic and circulator pump applications. Designed to accommodate both 60 Hz and 50 Hz electrical systems, this motor offers dual horsepower and dual voltage ratings, making it a flexible solution for a wide range of installations.
Key Specifications
- Horsepower: 1/2 HP (60 Hz) / 1/3 HP (50 Hz)
- Voltage: 115/208-230V (60 Hz) / 110/220V (50 Hz)
- Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)
- Phase: 1-Phase
- Frame: 56Z
- SKU: 169228
Dual-Frequency Compatibility
The 169228 motor is rated for both 60 Hz North American electrical systems and 50 Hz international systems, providing exceptional installation flexibility. The 56Z frame designation ensures direct compatibility with Bell & Gossett pump assemblies and other equipment designed to accept this industry-standard frame size.
Designed for Hydronic & Pump Applications
As a genuine Bell & Gossett replacement motor, the 169228 is purpose-built to maintain the performance and reliability of Bell & Gossett circulator and hydronic pump systems. Its dual-voltage capability (115V or 208-230V) allows it to be wired to match the available supply voltage on site, reducing installation complexity.
Why Choose Bell & Gossett 169228
- Genuine Bell & Gossett replacement motor for assured compatibility
- Dual horsepower ratings: 1/2 HP at 60 Hz, 1/3 HP at 50 Hz
- Dual voltage input: 115/208-230V (60 Hz) and 110/220V (50 Hz)
- Dual speed ratings: 1725 RPM at 60 Hz, 1425 RPM at 50 Hz
- Single-phase operation for straightforward residential and light commercial wiring
- 56Z frame for direct-fit replacement in compatible pump assemblies
- Supports both domestic and international electrical standards
