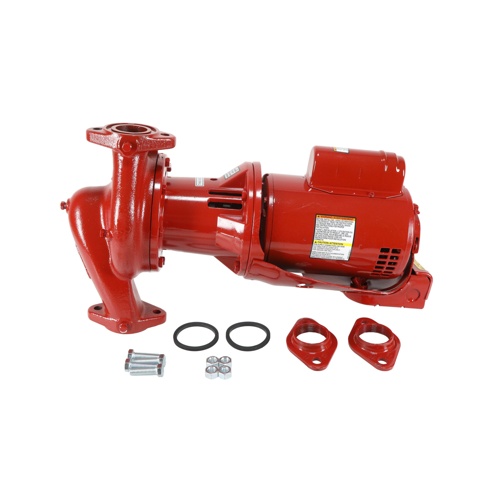

Bell & Gossett 1EF005LF 3/4HP Cast Iron Bronze Fitted Flex Coupled In-Line Pump (e609S)

Description

The Bell & Gossett 1EF005LF (Model e609S) is a high-performance, maintenance-free small flex coupled in-line centrifugal pump engineered for demanding hydronic heating and cooling applications. Built with a cast iron body and bronze-fitted construction, this pump delivers long-lasting durability and reliable fluid handling in commercial and industrial environments. Its compact in-line design simplifies installation and saves valuable mechanical room space, while the flexible coupling absorbs vibration and misalignment for quieter, smoother operation.

Key Features

• Maintenance-free design reduces downtime and lowers total cost of ownership
• Small flex coupled configuration absorbs vibration and accommodates minor shaft misalignment
• Cast iron body with bronze-fitted internals for corrosion resistance and durability
• In-line installation allows direct pipe mounting without additional supports
• 5.25″ impeller diameter for optimized flow and pressure performance
• 1-1/2″ suction and discharge connections for straightforward system integration

Electrical Specifications

• Motor Power: 3/4 HP
• Voltage: 115/230V AC (dual voltage)
• Phase: Single Phase
• Speed: 1750 RPM

Pump Specifications

• Model: e609S
• SKU: 1EF005LF
• Impeller Diameter: 5.25″
• Suction Connection: 1-1/2″
• Discharge Connection: 1-1/2″
• Body Material: Cast Iron
• Fitted Material: Bronze
• Coupling Type: Flexible (Small Flex Coupled)
• Pump Style: In-Line Centrifugal

Typical Applications

• Hydronic heating and cooling circulation systems
• Commercial HVAC building loops
• Industrial fluid transfer and recirculation
• Boiler and chiller system circulation

The Bell & Gossett e609S series is a trusted name in hydronic system design, offering the precision engineering and quality materials that HVAC professionals rely on for long-term system performance. The dual-voltage 115/230V AC motor provides installation flexibility across a wide range of electrical configurations, while the 1750 RPM operating speed ensures consistent, efficient fluid movement. Order the Bell & Gossett 1EF005LF from Jackson today for fast, reliable fulfillment.
