Description

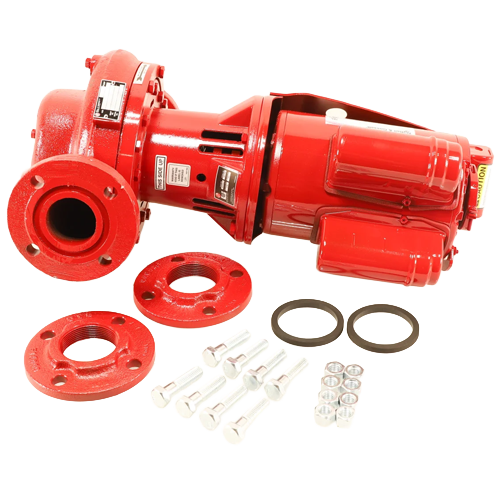

The Bell & Gossett 1EF008LF is a high-performance, maintenance-free small flex coupled in-line centrifugal pump engineered for reliable hydronic and HVAC fluid circulation. Designed as the Model e616S, this pump combines a robust cast iron body with bronze-fitted internals for long-lasting corrosion resistance and dependable operation in demanding commercial and residential hydronic systems.
Key Features
- Maintenance-free design reduces downtime and lowers total cost of ownership
- Small flex coupled configuration for easy alignment and vibration dampening
- Cast iron construction with bronze-fitted internals for durability and corrosion resistance
- In-line installation simplifies piping layouts and saves valuable mechanical room space
- 6.22″ impeller diameter delivers optimized flow and head performance
- 2″ suction and discharge connections for straightforward integration into existing piping
Electrical Specifications
- Motor Power: 1 HP
- Voltage: 115/230V AC (dual voltage)
- Phase: Single Phase
- Motor Speed: 1750 RPM
Pump Specifications
- Model: e616S
- Impeller Diameter: 6.22″
- Suction Connection: 2″
- Discharge Connection: 2″
- Body Material: Cast Iron
- Fitted Material: Bronze
- Coupling Type: Small Flex Coupled
- Mounting Style: In-Line
Ideal Applications
- Hydronic heating and cooling systems
- Chilled water circulation
- Hot water heating loops
- Commercial and light industrial HVAC fluid transfer
The Bell & Gossett e616S series is a trusted choice among HVAC professionals for its proven reliability, ease of installation, and low maintenance requirements. The dual-voltage motor (115/230V AC) provides installation flexibility across a wide range of electrical service configurations, while the 1750 RPM operating speed ensures efficient, quiet performance.
