Bell & Gossett 1EF010LF 3HP 208-230/460V 3-Phase In-Line Centrifugal Pump e620T

Description

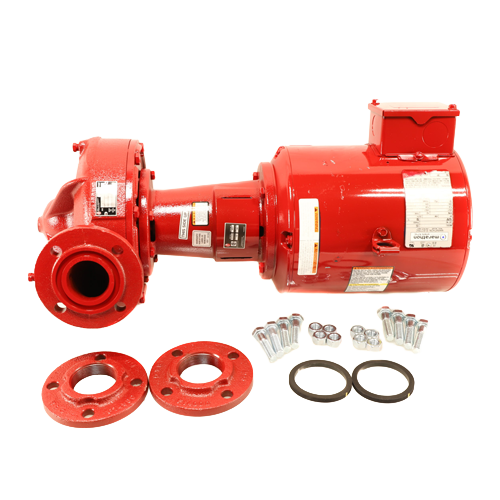

Bell & Gossett 1EF010LF Model e620T — Small Flex Coupled In-Line Centrifugal Pump

The Bell & Gossett 1EF010LF is a high-performance, maintenance-free small flex coupled in-line centrifugal pump engineered for demanding commercial and industrial hydronic systems. Part of the trusted e-Series lineup, the Model e620T delivers reliable, efficient fluid handling in a compact in-line configuration that simplifies installation and minimizes system footprint.

Key Features

• 3 HP motor for robust, continuous-duty performance
• 208-230/460V AC, three-phase power supply for broad electrical compatibility
• 1,750 RPM motor speed for efficient, low-noise operation
• Cast iron body construction for exceptional durability and long service life
• Bronze fitted internals for superior corrosion resistance in hydronic applications
• Maintenance-free design reduces downtime and total cost of ownership
• Small flex coupled configuration isolates motor from pump for vibration reduction
• 7″ impeller diameter for optimized flow and head performance
• 2″ suction and 2″ discharge connections for straightforward piping integration
• In-line design allows installation directly in the pipeline without additional supports

Specifications

• SKU: 1EF010LF
• Model: e620T
• Brand: Bell & Gossett
• Motor Horsepower: 3 HP
• Voltage: 208-230/460V AC
• Phase: Three Phase
• Motor Speed: 1,750 RPM
• Body Material: Cast Iron
• Fitted Material: Bronze
• Impeller Diameter: 7 inches
• Suction Connection: 2 inches
• Discharge Connection: 2 inches
• Coupling Type: Small Flex Coupled
• Pump Style: In-Line Centrifugal

Applications

• Commercial and industrial hydronic heating and cooling systems
• Chilled water and hot water circulation
• HVAC building systems requiring in-line pump configurations
• Process fluid transfer and recirculation

Bell & Gossett’s e-Series pumps are a benchmark in the hydronic industry, renowned for their engineering precision and long-term reliability. The 1EF010LF’s maintenance-free, flex-coupled design eliminates the need for routine seal and bearing servicing, while the cast iron/bronze construction ensures compatibility with a wide range of system fluids. Whether retrofitting an existing system or specifying for new construction, the e620T delivers the performance and durability that HVAC professionals demand.
