Description

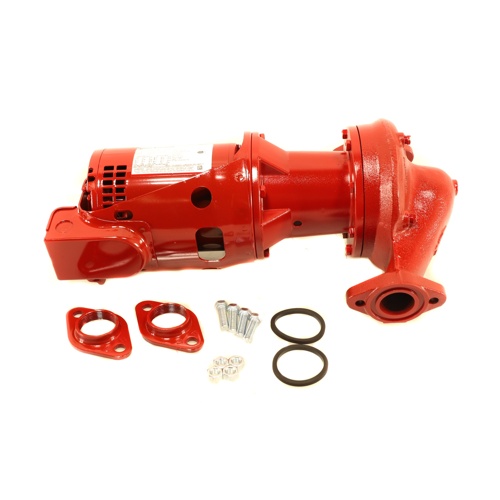

The Bell & Gossett 1EF047LF is a Model e608T small flex coupled in-line centrifugal pump engineered for reliable hydronic and fluid circulation in commercial and light industrial HVAC applications. Built with a cast iron body and bronze fitted internals, this pump delivers long-lasting corrosion resistance and dependable performance in closed-loop hydronic heating and cooling systems.
Key Features
- Motor Output: 1/2 HP for efficient, right-sized fluid circulation
- Voltage: 208-230/460 VAC — compatible with standard three-phase commercial power supplies
- Phase: Three Phase for smooth, energy-efficient motor operation
- Speed: 1,750 RPM for consistent, quiet performance
- Impeller Diameter: 4.94″ for optimized flow and pressure characteristics
- Suction & Discharge Connections: 1-1/2″ for straightforward inline piping integration
- Construction: Cast iron body with bronze fitted internals for durability and corrosion resistance
- Design: Small flex coupled configuration for vibration isolation and easy motor servicing
- Maintenance Free: Sealed bearing assembly eliminates routine lubrication requirements
- In-Line Configuration: Compact inline design saves space and simplifies installation
Construction & Design
The e608T features a cast iron volute and bronze fitted wetted components, making it well-suited for closed hydronic systems where water quality and material compatibility are critical. The flexible coupling between the motor and pump shaft absorbs vibration, reduces noise transmission, and allows for motor replacement without disturbing the pump casing or piping connections.
Applications
- Hydronic heating and cooling circulation
- Chilled water systems
- Hot water boiler loops
- Fan coil unit supply and return circuits
- Light commercial HVAC fluid distribution
Specifications Summary
- SKU: 1EF047LF
- Model: e608T
- Brand: Bell & Gossett
- Motor HP: 1/2 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 1,750 RPM
- Impeller Diameter: 4.94″
- Suction Connection: 1-1/2″
- Discharge Connection: 1-1/2″
- Body Material: Cast Iron
- Fitted: Bronze
- Coupling Type: Flex Coupled
- Maintenance: Maintenance Free
