Description

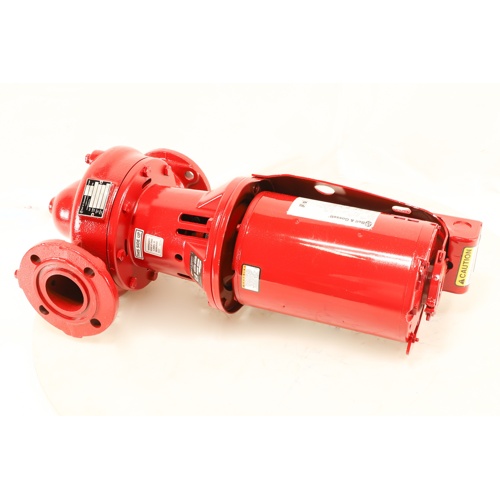

The Bell & Gossett 1EF054LF is a Model e612T small flex coupled, maintenance-free, in-line centrifugal pump engineered for reliable hydronic and commercial fluid circulation. Built with a cast iron body and bronze-fitted internals, this pump delivers long-lasting corrosion resistance and durability in demanding HVAC and building mechanical systems.
Powered by a 1 HP motor operating on 208-230/460V AC three-phase power at 1,750 RPM, the 1EF054LF is designed for efficient, low-maintenance operation. The flex coupled design isolates the motor from hydraulic forces, reducing vibration and extending service life. With a 5.25″ impeller diameter and 2″ suction and discharge connections, this pump is well-suited for medium-duty in-line installations where space and performance both matter.
Key Features
- Model: Bell & Gossett e612T (SKU: 1EF054LF)
- Motor Power: 1 HP
- Voltage: 208-230/460V AC
- Phase: Three Phase
- Speed: 1,750 RPM
- Impeller Diameter: 5.25″
- Suction & Discharge Connections: 2″
- Construction: Cast Iron body, Bronze-fitted internals
- Design: Small Flex Coupled, In-Line configuration
- Maintenance-free operation for reduced total cost of ownership
Applications
- Hydronic heating and cooling systems
- Commercial HVAC building loops
- Chilled water and hot water circulation
- Medium-duty in-line pumping applications
Why Choose Bell & Gossett?
Bell & Gossett is a trusted industry leader in hydronic system components, known for engineering pumps that deliver consistent performance, energy efficiency, and long service life. The e612T series continues that tradition with a compact, inline design that simplifies installation and minimizes mechanical room footprint.
