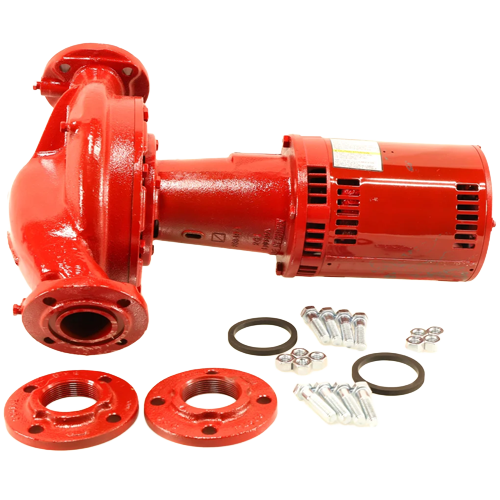

Bell & Gossett 1EF073LF e625T 1.5HP In-Line Centrifugal Pump, 208-230/460V 3Ph

Description

The Bell & Gossett 1EF073LF is a Model e625T Small Flex Coupled In-Line Centrifugal Pump engineered for reliable, long-term performance in commercial and industrial hydronic systems. Featuring a maintenance-free design, this pump delivers consistent flow with minimal upkeep, making it an ideal choice for demanding HVAC and plumbing applications.

Motor & Electrical Specifications

• Motor Power: 1.5 HP
• Voltage: 208-230/460 VAC
• Phase: Three Phase
• Speed: 1750 RPM

Pump Construction

• Casing Material: Cast Iron for durability and long service life
• Fitted Material: Bronze for superior corrosion resistance
• Impeller Diameter: 6.12″
• Coupling Type: Small Flex Coupled for vibration dampening and easy motor/pump alignment
• Configuration: In-Line design for space-efficient piping installation

Connection Details

• Suction Connection: 2″
• Discharge Connection: 2″

Key Features & Benefits

• Maintenance-free operation reduces downtime and total cost of ownership
• In-line configuration simplifies installation within existing piping runs
• Flex coupling absorbs vibration and misalignment, extending pump and motor life
• Cast iron body with bronze fitted internals provides excellent resistance to corrosion in hydronic systems
• Three-phase motor with dual voltage (208-230/460V) offers installation flexibility across a wide range of electrical services
• 1750 RPM operating speed balances efficient flow delivery with quiet, smooth operation

Ideal Applications

• Commercial and industrial hydronic heating and cooling systems
• Chilled water and hot water circulation
• HVAC building services requiring reliable in-line pumping
• Closed-loop and open-loop fluid transfer systems

The Bell & Gossett e625T series is backed by a legacy of engineering excellence in fluid handling. The 1EF073LF model combines robust cast iron construction with bronze-fitted internals and a maintenance-free flex-coupled design, delivering the performance and reliability that hydronic system professionals expect from the Bell & Gossett brand.
