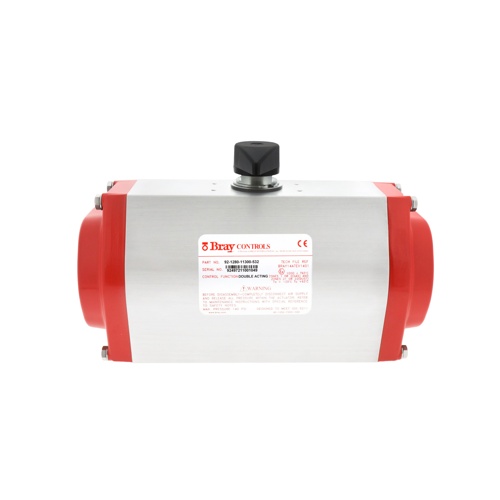

Bray Commercial 92-1280-11300-532 Double Acting Pneumatic Actuator

Description

The Bray Commercial 92-1280-11300-532 is a double acting pneumatic actuator engineered for precise, dependable valve automation in commercial and industrial HVAC applications. Delivering consistent torque output through the full stroke in both the open and close directions, this actuator is purpose-built for butterfly valves, ball valves, and other quarter-turn assemblies where positive actuation — without reliance on a return spring — is essential.

How Double Acting Pneumatic Actuators Work

Unlike spring-return designs, double acting pneumatic actuators use compressed air to drive the actuator shaft in both directions of travel. This approach maximizes torque throughout the entire 90° stroke and eliminates spring fatigue as a failure mode — making it the preferred choice for high-cycle applications, larger valve sizes, and any system where consistent, reliable force in both directions is non-negotiable.

Key Features

• Double acting operation — compressed air drives actuation in both open and close directions
• Engineered for quarter-turn valve automation including butterfly and ball valves
• Consistent torque output throughout the full 90° stroke
• Robust construction rated for commercial and industrial HVAC environments
• Compatible with standard pneumatic control systems and positioners
• Designed for high-cycle, long-service-life performance
• Bray Commercial quality construction for dependable field performance

Typical Applications

• Commercial HVAC air handling and chilled water systems
• Industrial process valve automation
• Building automation and controls integration
• Pneumatic control loops requiring positive actuation in both directions

Why Choose Bray Commercial

Bray Commercial is a globally recognized manufacturer of flow control products — including butterfly valves, ball valves, and pneumatic and electric actuators. Their actuators are trusted by mechanical contractors and facilities engineers for their durability, precision, and broad compatibility with valve and control system configurations across commercial and industrial applications.

Order the Bray Commercial 92-1280-11300-532 Double Acting Pneumatic Actuator from Jackson Systems and get the reliable valve automation solution your project demands.
